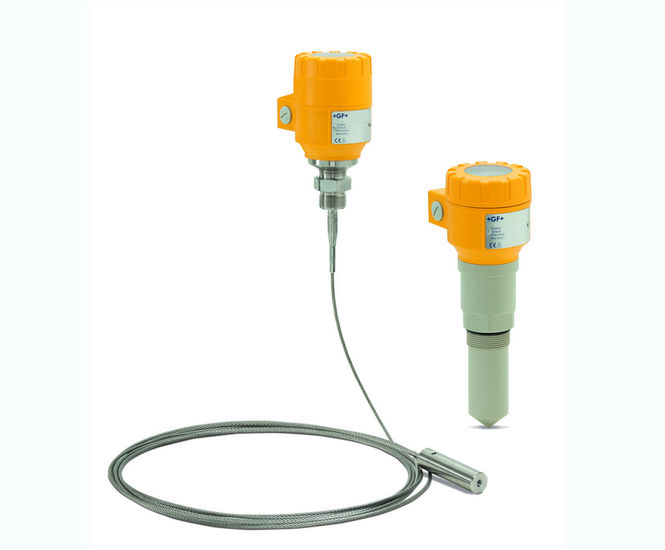

The wide range of tanks, process liquids and conditions requires appropriate technologies to provide consistent filling level information. With the right level measurement equipment nothing is easier than that. GF Piping Systems offers an advanced technology with the non-contact radar level transmitter type 2290 and guided radar level transmitter type 2291.
GF Piping Systems closes a gap in its offering with the new radar level transmitters type 2290/2291 for the chemical process industry and water treatment. They are used in challenging tank applications where other contacting or non-contacting measuring principles face limitations.
The level transmitter type 2290 combines all advantages of radar level measurement in a compact and economical unit. Type 2290 is available in a variety of different materials to resist even the most corrosive environments. With its tank mapping function it is easy to block out objects like internal pipes, welding seams, stirrers or heating elements.
If it gets really tough, the guided radar level transmitter type 2291 is the right choice. It provides consistent measurement even in turbulent process vessels. The radar signal is sent down the probe assembly eliminating the interferences caused by low dielectric liquids, heavy fuming, slightly conductive foams or internal tank obstructions.
Both transmitters are optimally suited for applications in harsh environments. Transmitter type 2290 is available with PP or PTFE antennas whilst type 2291 can be delivered with either stainless steel or FEP coated rope or stainless steel or PFA or PP coated rod. The transmitters are equipped with an big LCD display for clear visualization and easy configuration. The communication can be either via HART or analog.
