Chemicals / parameters BOD
COD
Nitrous compounds
Temperature
TOC
Water quality
Suitability Food / drink
Potable water
Process liquids
Raw water
Sludge / slurry / sewage
Wastewater / effluent
Type Fixed
Portable
Wall mounted
System type Analysers
Features Alarm trip
Datalogging
Self cleaning
Waterproof
Weatherproof




The NICO sensor is based on the same concept of the more expensive TriOS sensors such as OPUS, LISA and VIPER but uses the latest photo diode and specific UV filter measurement to photometrically report the Nitrate (NOx) concentration in water and waste water. The four detection channels enable a precise optical determination of nitrate by absorption, taking into account turbidity , dissolved organic substances and additionally temperature. Different path lengths accommodate a wide range of measurement. Automatic compressed air cleaning may be simply integrated. Alternatively, an automatic wiper system may be simply attached. Typically, the sensor is directly immersed in the sample channel. Options are available for flow cell installation with optional ultrasonic cleaning or installation within a sample break-tank. The robust stainless steel housing may be upgraded to a titanium construction for saline applications. The sensor may be connected to the Tribox mini or Tribox 3 controller of used as a blind sensor with a G2 interface. The sensor is ideal for water production monitoring applications such as intake protection or waste water process control and compliance monitoring.

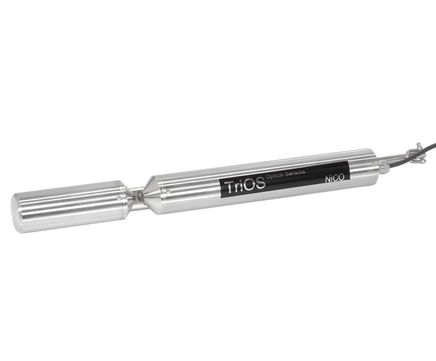

TriOS NICO Nitrate (NOx) digital sensor:

Robust submersible, optical sensor technology using UV spectrum with turbidity and dissolved organic correction. Specially coated optical windows. Six different path lengths giving dynamic measuring range capability.
Xenon Flash Lamp technology and four photo diode / filters
6 path lengths 0.30/1.00/2.00/5.00/10/50 mm attenuation
Measuring Range 0-30mg/l N (0-133mg/l NO3) using 2mm optical path
Stainless 1.4571/1.4404 robust construction
Response time from 20 seconds
Dimensions 470 x 48mm (10mm pathlength)
10.0 m fixed cable as standard (optional subconn connector & removable cable)
Optional compressed air cleaning (air-line attachment integrated as standard)
Optional wiper system available
Weight 3.0 Kg


Tribox Mini Two - channel digital controller:

Aluminium die-cast housing with local LCD digital display, five status LED’s and integral web browser. Suitable for connection of any two TriOS digital sensors communicating using Modbus RTU digital protocol.
Ingress Protection IP65
Two user configurable 4-20mA outputs
12VDC control output suitable for operating universal wiper system for sensor
Two external waterproof M12 sensor connectors
Dimensions 150 x 139 x 80mm
Weight 1.6Kg
Power Supply 100-240 VAC


The NICO sensor is based on the same concept of the more expensive TriOS sensors such as OPUS, LISA and VIPER but uses the latest photo diode and specific UV filter measurement to photometrically report the Nitrate (NOx) concentration in water and waste water. The four detection channels enable a precise optical determination of nitrate by absorption, taking into account turbidity , dissolved organic substances and additionally temperature. Different path lengths accommodate a wide range of measurement. Automatic compressed air cleaning may be simply integrated. Alternatively, an automatic wiper system may be simply attached. Typically, the sensor is directly immersed in the sample channel. Options are available for flow cell installation with optional ultrasonic cleaning or installation within a sample break-tank. The robust stainless steel housing may be upgraded to a titanium construction for saline applications. The sensor may be connected to the Tribox mini or Tribox 3 controller of used as a blind sensor with a G2 interface. The sensor is ideal for water production monitoring applications such as intake protection or waste water process control and compliance monitoring.



TriOS NICO Nitrate (NOx) digital sensor:

Robust submersible, optical sensor technology using UV spectrum with turbidity and dissolved organic correction. Specially coated optical windows. Six different path lengths giving dynamic measuring range capability.
Xenon Flash Lamp technology and four photo diode / filters
6 path lengths 0.30/1.00/2.00/5.00/10/50 mm attenuation
Measuring Range 0-30mg/l N (0-133mg/l NO3) using 2mm optical path
Stainless 1.4571/1.4404 robust construction
Response time from 20 seconds
Dimensions 470 x 48mm (10mm pathlength)
10.0 m fixed cable as standard (optional subconn connector & removable cable)
Optional compressed air cleaning (air-line attachment integrated as standard)
Optional wiper system available
Weight 3.0 Kg


Tribox Mini Two - channel digital controller:

Aluminium die-cast housing with local LCD digital display, five status LED’s and integral web browser. Suitable for connection of any two TriOS digital sensors communicating using Modbus RTU digital protocol.
Ingress Protection IP65
Two user configurable 4-20mA outputs
12VDC control output suitable for operating universal wiper system for sensor
Two external waterproof M12 sensor connectors
Dimensions 150 x 139 x 80mm
Weight 1.6Kg
Power Supply 100-240 VAC
