Max. flow 120m3 / hour

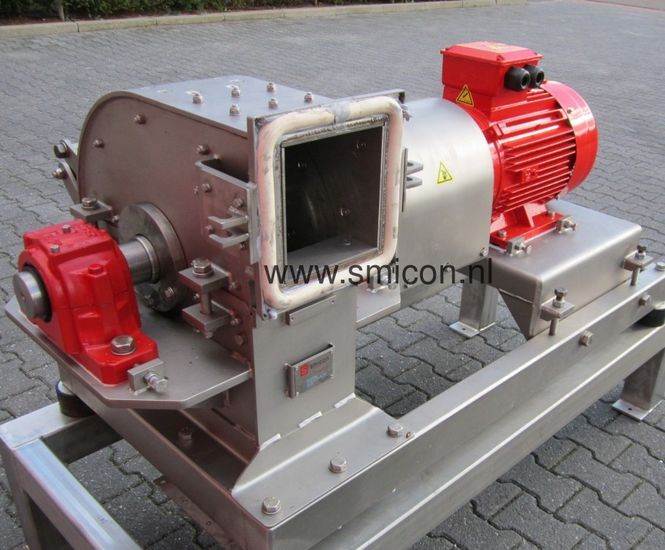

SMIMO grinder pumps from Smicon for pulverising organic matter to a pumpable pulp.



Models

  • SMIMO05
  • SMIMO15
  • SMIMO30

Key features

  • Sieve inside the hammer mill ensures that the product is only discharged once the particles have the required size.
  • Parts can easily be exchanged
  • Masher is very resistant to aggressive products and substances

Applications

  • Animal feed industry
  • Recycling industry

Technical data

  • Power: 11 to 55kW
  • RPM: up to 3000
  • Capacity: approximately 120m³ per hour
  • Sieve mesh sizes: 2 to 30mm
  • Dimensions: 520x760x970mm to 3966x2429x1539mm
  • Material: 304 grade stainless steel
  • Control: available with PLC and/or SCADA control


SMIMO grinder pumps from Smicon for pulverising organic matter to a pumpable pulp.



Models

  • SMIMO05
  • SMIMO15
  • SMIMO30

Key features

  • Sieve inside the hammer mill ensures that the product is only discharged once the particles have the required size.
  • Parts can easily be exchanged
  • Masher is very resistant to aggressive products and substances

Applications

  • Animal feed industry
  • Recycling industry

Technical data

  • Power: 11 to 55kW
  • RPM: up to 3000
  • Capacity: approximately 120m³ per hour
  • Sieve mesh sizes: 2 to 30mm
  • Dimensions: 520x760x970mm to 3966x2429x1539mm
  • Material: 304 grade stainless steel
  • Control: available with PLC and/or SCADA control
