Type Positive displacement blowers
Media blown Air
Neutral gases
Process gases
Dirty / waste gases
Operation Oil free
Minimum flow capacity (m3/h) 600
Maximum flow capacity (m3/h) 2250
Maximum pressure (bar) 1250 mbar
Minimum pressure (bar) -500 mbar

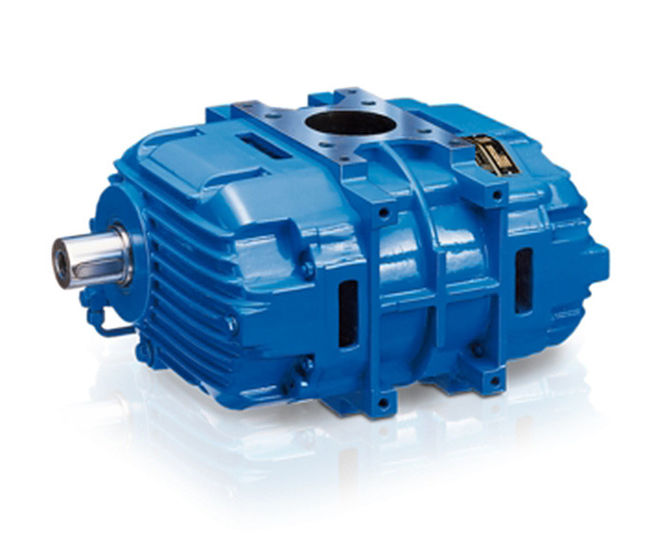

Aerzen bulk vehicle blowers have been developed for installation in tankers and silo trucks with extended pressure differentials of up to 1.2 bar. Conveyance in two directions possible using either horizontal or vertical flow. Proven technology, oil-free.

Design features

  • The conveying chamber is completely separated from the oil sumps by a space open to atmosphere.
  • The machine can be positioned upright, suspended from the top, and suspended from the left or right.
  • They are also available with an integrated gearbox with a speed set-up ratio of i=2,1.
  • The operating speed range is 1350 to 3200 1/min.
  • The drive side is grease lubricated, while the gear side is splash oil lubricated.
  • Gear driven models feature splash oil lubrication on both sides. Oil level check by means of dipstick.

Applications

  • Pneumatic conveyance of bulk materials
  • Aeration
  • Filter backwashing
  • Gas conveyance
  • Degassing
  • Dust removal
  • Vacuum production
  • Biogas treatment
  • Air separation plant


Aerzen bulk vehicle blowers have been developed for installation in tankers and silo trucks with extended pressure differentials of up to 1.2 bar. Conveyance in two directions possible using either horizontal or vertical flow. Proven technology, oil-free.

Design features

  • The conveying chamber is completely separated from the oil sumps by a space open to atmosphere.
  • The machine can be positioned upright, suspended from the top, and suspended from the left or right.
  • They are also available with an integrated gearbox with a speed set-up ratio of i=2,1.
  • The operating speed range is 1350 to 3200 1/min.
  • The drive side is grease lubricated, while the gear side is splash oil lubricated.
  • Gear driven models feature splash oil lubrication on both sides. Oil level check by means of dipstick.

Applications

  • Pneumatic conveyance of bulk materials
  • Aeration
  • Filter backwashing
  • Gas conveyance
  • Degassing
  • Dust removal
  • Vacuum production
  • Biogas treatment
  • Air separation plant
