Media compressed Aggressive gases
Air
Biofill gases
Dirty / waste gases
Landfill gases
Neutral gases
Process gases
Compressor type Rotary screw compressors
Operation Air cooled
Oil free
Components / ancillaries Condensate drains
Dryers
Filters
Separators
Silencers
Variable speed drives
Support services Energy audits
For hire
Inspection
Maintenance
Monitoring
Planned maintenance
Refurbishment
Servicing
Site survey
Troubleshooting
Product accreditation ATEX approved (Zone 0 / 20)
ATEX approved (Zone 1 / 21)
ATEX approved (Zone 2 / 22)
ISO 8573-1 Class 0
Maximum flow capacity (m3/h) 120
Minimum flow capacity (m3/h) 2650
Maximum pressure (bar) 3500 mbar
Maximum power (kW) 2000

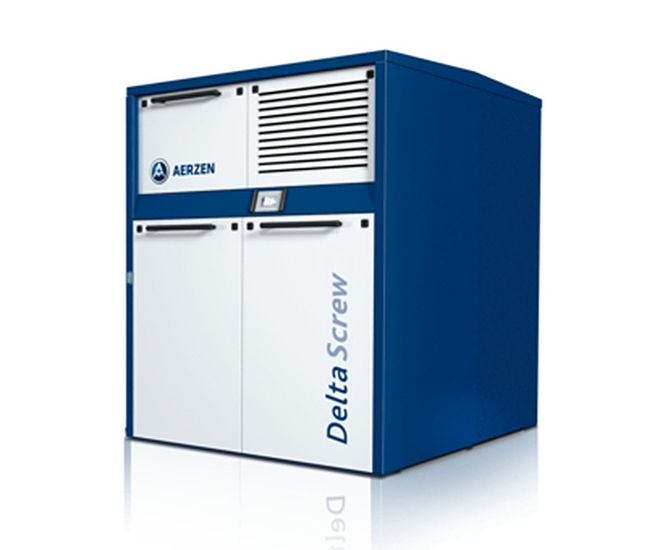

The single-stage, oil-free screw compressors in the Delta Screw Generation 5 plus series are universal tools. They bundle all the know-how of a world market leader in compressor technology to offer you ‘the user’ maximum efficiency. These innovative machines are belt-driven to provide air and nitrogen applications at positive pressure, negative pressure, and in a range of nominal sizes. The flexible modular system allows for almost any combination of compressors and accessory components. The belt drive allows for optimal adaptation of the system to the job at hand, as well as for any changes that may become necessary later. In addition, the belt drive allows for precise configuration – an important feature given that the greatest savings come from saving energy. This means, for example, that a 5% deviation in the volume stream means a 5% increase in energy consumption.

Key advantages

Delta Screw Generation 5 plus is the fifth generation in Aerzen’s most successful line of compressor packages and also comes with five main advantages:

  • Energy efficient, reduced life-cycle costs
  • Significantly reduced noise levels
  • ATEX certified for spark suppression
  • Space-saving compact design
  • User friendly and low-maintenance

Applications

  • Conveyance or compression of inert gases
  • Pneumatic air or nitrogen transport of powders, bulk solids, ash, etc.
  • Aeration of sewage tanks
  • Blending of cement
  • Vacuum forming for the glass industry
  • Keeping waterways and ports ice-free
  • Creating oil barriers
  • Gas-air mixing installations
  • Oxidation air for power plants
  • Stationary unloading of tanker trucks
  • Vacuum production for the paper industry
  • Forced air for spun-bonded olefin production
  • Aircraft turbine starters


The single-stage, oil-free screw compressors in the Delta Screw Generation 5 plus series are universal tools. They bundle all the know-how of a world market leader in compressor technology to offer you ‘the user’ maximum efficiency. These innovative machines are belt-driven to provide air and nitrogen applications at positive pressure, negative pressure, and in a range of nominal sizes. The flexible modular system allows for almost any combination of compressors and accessory components. The belt drive allows for optimal adaptation of the system to the job at hand, as well as for any changes that may become necessary later. In addition, the belt drive allows for precise configuration – an important feature given that the greatest savings come from saving energy. This means, for example, that a 5% deviation in the volume stream means a 5% increase in energy consumption.

Key advantages

Delta Screw Generation 5 plus is the fifth generation in Aerzen’s most successful line of compressor packages and also comes with five main advantages:

  • Energy efficient, reduced life-cycle costs
  • Significantly reduced noise levels
  • ATEX certified for spark suppression
  • Space-saving compact design
  • User friendly and low-maintenance

Applications

  • Conveyance or compression of inert gases
  • Pneumatic air or nitrogen transport of powders, bulk solids, ash, etc.
  • Aeration of sewage tanks
  • Blending of cement
  • Vacuum forming for the glass industry
  • Keeping waterways and ports ice-free
  • Creating oil barriers
  • Gas-air mixing installations
  • Oxidation air for power plants
  • Stationary unloading of tanker trucks
  • Vacuum production for the paper industry
  • Forced air for spun-bonded olefin production
  • Aircraft turbine starters
