Media handled Sludge
Wastewater / effluent
Centrifuge type Decanter centrifuges

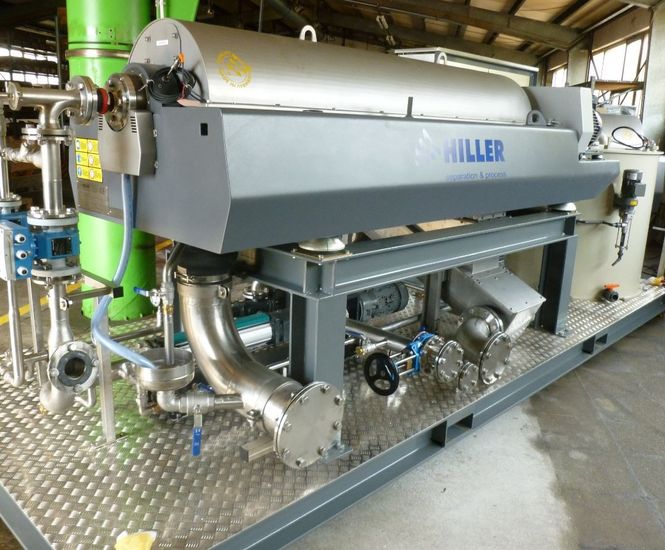

The DecaSmart DP45N is a skid-mounted decanter centrifuge offering high processing quality and operational reliability. It can process 15-25m3/hr of feed material and can be supplied as a complete package including control panel, pumps, conveyor, pipework, polymer make up, flowmeters etc.

The DecaSmart DP45N offers simple plug-and-play integration into ongoing operations, as well as a low price point and low operational costs.

The installed units are interlocked via switchboard. Fully automatic operation is ensured by our centrifuge control unit SEE-Control, also integrated in the switchboard.

Hiller compact units are a high-performance, economical and high-quality solution for separation tasks.

Key data

Throughput rate: up to 23m³/h
Automatic polymer station for liquid polymers
Outer dimensions: 5550 x 2150 x 2100mm
Transport weight: 7500kg

Connections

Sludge (suction connection): flange DN80 PN16
Centrate (unpressurised): flange DN200 PN16
Water: flange DN40 PN16
Flushing water outlet: flange DN150 PN16
Solids discharge via trough conveyor
Adaptors and plugs available for all standard connections

Electrical connections

400V 50Hz
80A
Approx. 50kW


The DecaSmart DP45N is a skid-mounted decanter centrifuge offering high processing quality and operational reliability. It can process 15-25m3/hr of feed material and can be supplied as a complete package including control panel, pumps, conveyor, pipework, polymer make up, flowmeters etc.

The DecaSmart DP45N offers simple plug-and-play integration into ongoing operations, as well as a low price point and low operational costs.

The installed units are interlocked via switchboard. Fully automatic operation is ensured by our centrifuge control unit SEE-Control, also integrated in the switchboard.

Hiller compact units are a high-performance, economical and high-quality solution for separation tasks.

Key data

Throughput rate: up to 23m³/h
Automatic polymer station for liquid polymers
Outer dimensions: 5550 x 2150 x 2100mm
Transport weight: 7500kg

Connections

Sludge (suction connection): flange DN80 PN16
Centrate (unpressurised): flange DN200 PN16
Water: flange DN40 PN16
Flushing water outlet: flange DN150 PN16
Solids discharge via trough conveyor
Adaptors and plugs available for all standard connections

Electrical connections

400V 50Hz
80A
Approx. 50kW
