The OPUS uses UV spectral analysis to photometrically report the Nitrate (NO3), Nitrate(NO2), UVT, UVA, inferred TOC/BOD/COD concentrations in water and waste water. The precise optical determination also takes into account turbidity and temparature. Different path lengths accommodate a wide range of measurement. Automatic compressed air cleaning may be simply integrated. Typically, the sensor is directly immersed in the sample channel. Options are available for flow cell installation with optional ultrasonic cleaning. Alternatively, an automatic wiper system may be simply attached. The robust stainless steel housing may be upgraded to a titanium construction for saline applications. The sensor may be connected to the Tribox mini or Tribox 3 controller of used as a blind sensor with a G2 interface. The sensor is ideal for water production monitoring applications such as intake protection or waste water process control and compliance monitoring.

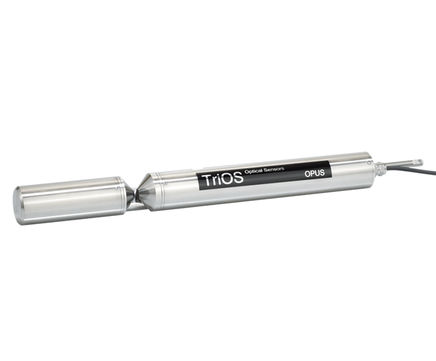

TriOS OPUS digital sensor:
Robust submersible, optical sensor technology using UV spectrum with turbidity and temperature corrections. Specially coated optical windows. Six 6 different path lengths giving dynamic measuring range capability.
Xenon Flash Lamp technology and minature spectrometer
6 path lengths 0.30/1.00/2.00/5.00/10/50 mm attenuation
Stainless 1.4571/1.4404 robust construction
Response time from 20 seconds
Dimensions 470 x 48mm (10mm pathlength)
10.0 m fixed cable as standard (optional subconn connector & removable cable)
Optional compressed air cleaning (air-line attachment integrated as standard)
Optional wiper system available
Weight 3.0 Kg
Tribox Mini Two - channel digital controller:
Aluminium die-cast housing with local LCD digital display, five status LED’s and integral web browser. Suitable for connection of any two TriOS digital sensors communicating using Modbus RTU digital protocol.
Ingress Protection IP65
Two user configurable 4-20mA outputs
12VDC control output suitable for operating universal wiper system for sensor
Two external waterproof M12 sensor connectors
Dimensions 150 x 139 x 80mm
Power Supply 100-240 VAC
