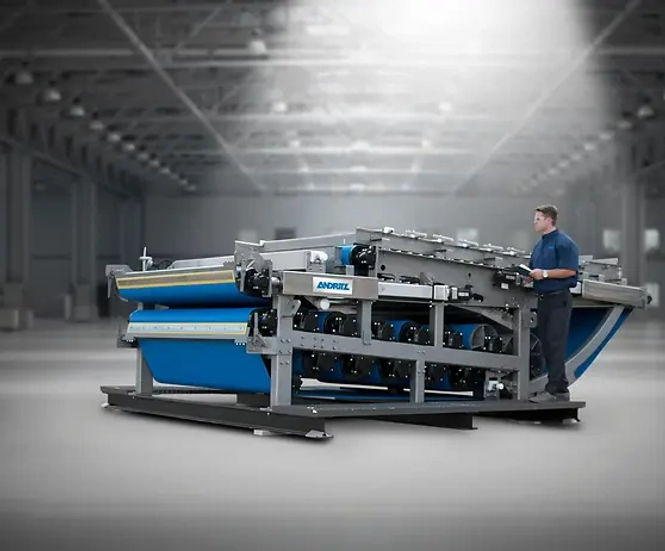

ANDRITZ SME-Q and SMX-Q belt presses are low-profile machines for dewatering municipal and industrial sludge, designed for high dry solids and throughput. Modular roll configuration allows 7, 8, or 12 rolls. Wide gravity zone and camber wedge support efficient flow and gradual pressure increase. Installation costs are reduced by eliminating platforms.

  • Belt press for sludge dewatering with modular roll options

  • Low-profile design at 152cm

  • Flexible roll configuration (7, 8, or 12 rolls) without frame changes

  • Wide gravity zone for efficient processing without extra thickening equipment

  • Optimised camber wedge for gradual pressure increase a

  • Low energy use and reduced polymer consumption

  • Improved operator safety with all maintenance points at ground level

Applications

  • Thickening and dewatering of municipal and industrial sludge

  • Pulp and paper sludge

  • Manure and biogas applications

  • Slaughterhouse and chemical sludge

Specification

SME - Q

SMX - Q

Number of active rolls

7

8 or 12

Camber wedge

x

x

Low profile

x

x

Dryness performances

+

++

Capacity

+

++

Stainless steel frame

x

x

Open frame design

x

x

Extra long thickening zone

x

x

Gradual, optimised pressure increase

x

x

Spray pipes with cleaning brush for fast cleaning

x

x

Standard row of plows

5

8

Footprint

++

+

Filtrate trays separated to re-use filtrate from

thickening zone as wash water

Not available

Standard

Dimensions

Overall height 152cm

Options and variations

7, 8, or 12 roll configurations

Performance

Up to 50% higher throughput than comparable machines

Lowest residual moisture due to extended dewatering area

Maintenance

All maintenance points accessible at ground level
