Siltbuster - air flotation

Siltbuster designed and manufactured lamella DAF units are used to remove suspended solids, organic matter, algae, colour and fats, oils and greases (FOGs) from water and wastewater.

Using established solids/liquid separation technology, the DAF units generate ‘white-water’ by dissolving air under pressure and then releasing the pressure to form micro fine air bubbles. The solids attach to the air bubbles which causes them to rise to the surface, where they thicken by natural de-watering and are then removed by means of a mechanical scraper.

The use of lamella plates in the standard Siltbuster lamella DAF units reduces the footprint resulting in a compact unit. The power requirements are also reduced by use of a Multiphase DAF white water pump rather than a separate compressor / saturation vessel arrangement and additional white water return pumps.

DAF systems can be supplied as stand-alone units, or as part of a complete treatment package, including feed pumps, flow proportional chemical pre-treatment, pipe flocculators or mixing tanks, sludge pumps and sludge storage tanks.

Features include:

• Siltbuster DAF units incorporate lamella plate technology, which increases the effective area of the unit by a factor of 5, as well as the performance.
• Mild Steel or Stainless Steel construction; as required by the customer.
• A multi-phase side channel pump generates the whitewater in the unit and eliminates the need for a separate compressor and air saturation vessel. It just needs to be plugged in to operate.
• Lamella DAF units are compact with a significantly smaller footprint than most conventional units.
• The units are transportable.

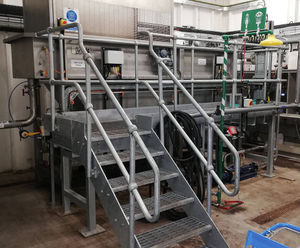

• All units can be provided with integral access platforms.
• Whether it’s for food processing, environmental remediation, or municipal water and wastewater treatment, Siltbuster can customise products to customer requirements.

The standard lamella DAF units cater for flow rates from 1m3/hr up to 150m3/hr.

The company offers a complete range of lamella DAF units and packaged systems on a weekly hire basis.
