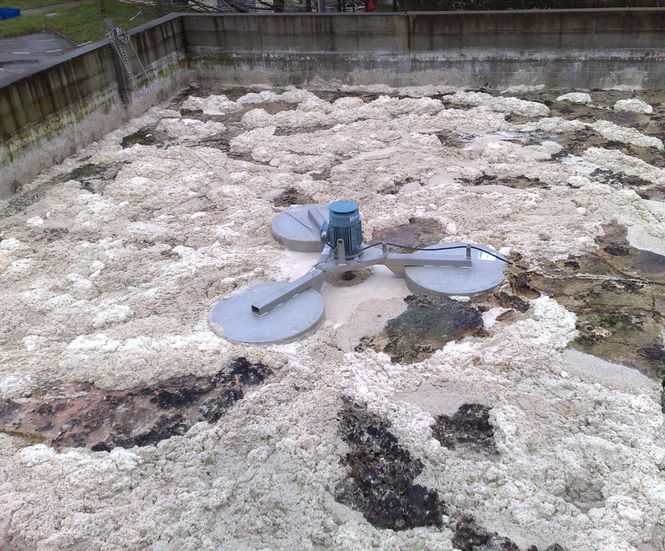

MIX SL is a fixed or floating submerged mixer for general mixing and flow generation in tanks, lagoons, and reservoirs, made from AISI 304/316 stainless steel, with open dual helical impeller and submersible IP68 motor, available in multiple power and size variations.

  • Submerged mixer for intensive, directional sub-surface mixing with minimal surface disturbance

  • Made from AISI 304/316 stainless steel

  • Submersible IP68 motor with low maintenance

  • Direct drive with 4 or 6-pole speeds

  • Rail, floor, or float mounting options

  • Variable operating angle from 0 to 180°

  • Easy installation and removal

Applications

  • General mixing in tanks and basins

  • Flow generation in lagoons

  • Activated sludge processes

  • Large surface area reservoirs

  • Denitrification + sbr + asp

Dimensions

SERIES 24: 1500 rpm

Model MIX - SL

P motor (KW)

RPM

Ø float A (mm)

Draught B(mm)

H total C (mm)

Mass (Kg)

0150-24

1,5

1390

512

698

928

51

0220-24

2,2

1375

512

715

945

55

0300-24

3

1350

527

776

1006

60

0400-24

4

1380

527

798

1028

64

0550-24

5,5

1360

609

875

1105

87

0650-24

6,5

1400

609

881

1111

89

0750-24

7,5

1410

725

1060

1330

104

0900-24

9

1420

725

1050

1320

113

SERIES 16 : 1000 rpm

Model MIX - SL

P motor (KW)

RPM

Ø float A (mm)

Draught B(mm)

H total C (mm)

Mass (Kg)

0300-16

3

930

725

1064

1334

106

1400-16

4

950

725

1081

1351

117

1550-16

5,5

960

890

1308

1578

184

1750-16

7,5

965

890

1333

1603

197

1100-16

11

965

890

1368

1638

216

Materials

AISI 304/316 stainless steel

Options and variations

Rail, floor, or float mounting

Variable operating angle 0–180°

Fixed or variable water levels

Performance

Submersible motor with IP68 protection

Low power to volume performance

Installation

Easy installation and removal
