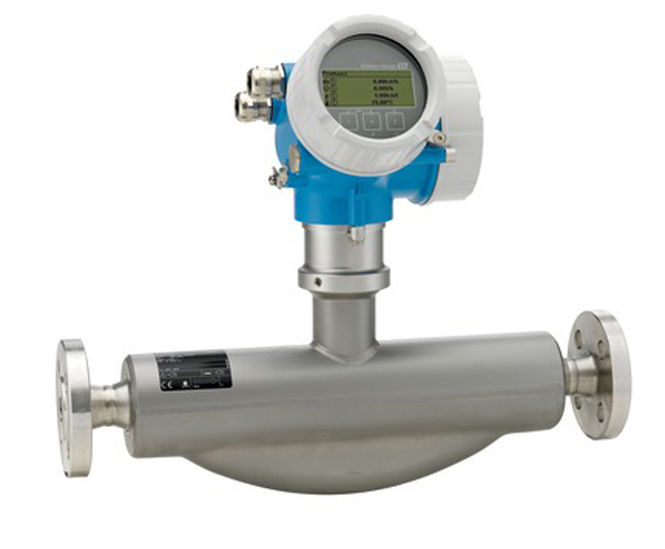

Highly accurate device for use under varying process conditions. Offers genuine, industry-compliant two-wire technology, enabling it to be seamlessly integrated into existing infrastructures and control systems.

Additional advantages are high operational safety in hazardous areas thanks to an intrinsically safe design (Ex ia), and familiar installation procedure.

Benefits

  • Highest process safety – immune to fluctuating and harsh environments

  • Fewer process measuring points – multivariable measurement (flow, density, temperature)

  • Space-saving installation – no in/outlet run needs

  • Convenient device wiring – separate connection compartment

  • Safe operation – no need to open the device due to display with touch control, background lighting

  • Integrated verification – Heartbeat Technology™

Field of application

  • Measuring principle operates independently of physical fluid properties such as viscosity or density

  • Highest measurement performance for liquids and gases under varying, demanding process conditions.

Device properties

  • Mass flow: measured error ±0,1 %

  • Rated secondary containment up to 40 bar (580 psi)

  • Nominal diameter: DN 8 to 80 (3/8 to 3")

  • Loop-powered technology

  • Robust two-chamber housing

  • Plant safety: worldwide approvals (SIL, Haz. area)
