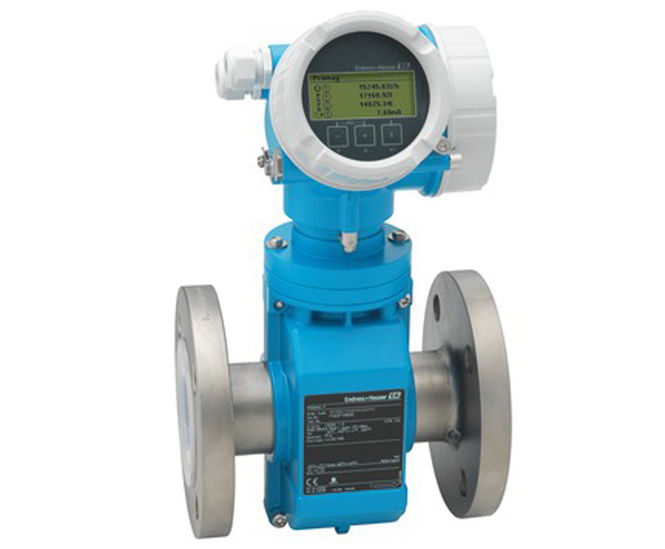

Promag P 200 offers genuine, industry-compliant two-wire technology, enabling the device to be seamlessly integrated into existing infrastructures and control systems.

Additional advantages are high operational safety in hazardous areas thanks to an intrinsically safe design, and a familiar installation procedure.

Promag P 200 is specifically for chemical and process applications with corrosive liquids and high medium temperatures.

Benefits

  • Versatile applications – wide variety of wetted materials

  • Energy-saving flow measurement – no pressure loss due to cross-section constriction

  • Convenient device wiring – separate connection compartment

  • Safe operation – no need to open the device due to display with touch control, background lighting

  • Maintenance-free – no moving parts

  • Integrated verification – Heartbeat Technology™

Field of application

  • The measuring principle is virtually independent of pressure, density, temperature and viscosity

  • Dedicated for chemical and process applications with corrosive liquids and high medium temperatures

Device properties

  • Nominal diameter: max. DN 200 (8")

  • All common Ex approvals

  • Liner made of PTFE or PFA

  • Loop-powered technology

  • Robust two-chamber housing

  • Plant safety: worldwide approvals (SIL, Haz. area)

Specifications

  • Max. measurement error

    Volume flow: ±0.5% o.r. ± 2mm/s

  • Measuring range

    4 dm3/min to 1100m3/h (1-4850 gal/min)

  • Medium temperature range

    Liner material PFA: –20 to +150°C (–4 to +302°F)
    Liner material PTFE: –40 to +130°C (–40 to +266°F)

  • Max. process pressure

    PN 40, Class 300, 20K

  • Wetted materials

    Liner: PFA; PTFE
    Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
