Media stored Chemicals
Food / drink
Industrial effluents
Non-potable water
Potable water
Sludge / slurry / sewage
Tank type One piece tanks
Material Thermoplastics
Features Insulated
Product accreditation WRAS approved
Support services Fabrication
Capacity 150-30,000 litres / 33-6,599 gallons
Dimensions Various sizes

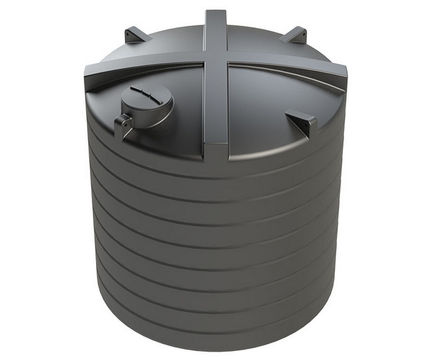

Enduratank insulated tanks are single-skin, self-supporting, vertical tanks suitable for the storage of a wide range of liquid chemicals. They can be insulated with jackets of various thicknesses for use where temperature regulation and the prevention of overheating or freezing of liquids are important.

Key features

  • Available in 25 sizes ranging from 150L to 30,000L
  • Closed-cell structure provides built-in vapour barrier
  • UV resistant tank jacket for outdoor use
  • Thermal conductivity value λ(40°C) ≤ 0.042 W/(m • K)
  • Minimum energy loss through low thermal conductivity
  • Jacket available in 13mm, 19mm and 25mm thicknesses
  • WRAS approved tank options available for potable water storage
  • Type AB air gap can be fitted to all WRAS approved tanks as an optional extra
  • Tough, durable, impact resistant
  • Supplied as standard with a 1.5” Outlet (other options available)
  • 100% rustproof
  • UK manufactured
  • 10-year guarantee
  • Supplied direct from stock for fast delivery

Applications

Enduratank insulated vertical tanks have been used for many applications:

  • Food industry
  • Water storage tanks
  • Beer, cider brewing and winemaking
  • Chemical storage and supply tanks
  • Agricultural and Industrial applications
  • Dosing tanks
  • Popular uses of insulated tanks with a slimline profile include:
  • Static rainwater storage
  • Water storage for gardens and irrigation systems
  • Loft header tanks
  • Potable water storage
  • Storage of liquids where space is at a premium
  • For domestic, industrial and agricultural applications

Popular uses of insulated tanks with a slimline profile include:

  • Static rainwater storage
  • Water storage for gardens and irrigation systems
  • Loft header tanks
  • Potable water storage
  • Storage of liquids where space is at a premium
  • For domestic, industrial and agricultural applications

Manufacture

Enduratank insulated vertical tanks are constructed from rotationally moulded, medium-density, UV stabilised, food-grade polyethylene. Insulated slimline vertical tanks are constructed as a one-piece polyethylene moulding. All tanks are wrapped in an insulation jacket that prevents condensation and effectively reduces thermal and energy loss.

Technical specification

150L, 600mm dia x 650mm H
300L, 600mm dia x 1200mm H
500L, 700mm dia x 1500mm H
500L, 870mm L x 650mm W x 1200mm H (slimline profile)
720L, 700mm dia x 2150mm H
1,000L, 1650mm L x 670mm W x 1200mm H (slimline profile)
1,250L, 1200mm dia x 1200mm H
2,000L, 1200mm dia x 1900mm H
2,500L, 1400mm dia x 1800mm H
3,000L, 1400mm dia x 2135mm H
4,000L, 1900mm dia x 1875mm H
5,000L, 1900mm dia x 2300mm H
6,000L, 1900mm dia x 2500mm H
6,500L, 2600mm dia x 1500mm H
7,000L, 2400mm dia x 1820mm H
8,500L, 2600mm dia x 2063mm H
10,000L, 2400mm dia x 2500mm H
12,500L, 2600mm dia x 2650mm H
14,000L, 2600mm dia x 2900mm H
15,000L, 2400mm dia x 3550mm H
16,800L, 2600mm dia x 3410mm H
20,000L, 2850mm dia x 3600mm H
20,800L, 2600mm dia x 4150mm H
22,000L, 3450mm dia x 2600mm H
25,000L, 2700mm dia x 4650mm H
26,000L, 3450mm dia x 3200mm H
30,000L, 3450mm dia x 3650mm H


Please note: tank sizes quoted are subject to a +/- 3% variation.


Enduratank insulated tanks are single-skin, self-supporting, vertical tanks suitable for the storage of a wide range of liquid chemicals. They can be insulated with jackets of various thicknesses for use where temperature regulation and the prevention of overheating or freezing of liquids are important.

Key features

  • Available in 25 sizes ranging from 150L to 30,000L
  • Closed-cell structure provides built-in vapour barrier
  • UV resistant tank jacket for outdoor use
  • Thermal conductivity value λ(40°C) ≤ 0.042 W/(m • K)
  • Minimum energy loss through low thermal conductivity
  • Jacket available in 13mm, 19mm and 25mm thicknesses
  • WRAS approved tank options available for potable water storage
  • Type AB air gap can be fitted to all WRAS approved tanks as an optional extra
  • Tough, durable, impact resistant
  • Supplied as standard with a 1.5” Outlet (other options available)
  • 100% rustproof
  • UK manufactured
  • 10-year guarantee
  • Supplied direct from stock for fast delivery

Applications

Enduratank insulated vertical tanks have been used for many applications:

  • Food industry
  • Water storage tanks
  • Beer, cider brewing and winemaking
  • Chemical storage and supply tanks
  • Agricultural and Industrial applications
  • Dosing tanks
  • Popular uses of insulated tanks with a slimline profile include:
  • Static rainwater storage
  • Water storage for gardens and irrigation systems
  • Loft header tanks
  • Potable water storage
  • Storage of liquids where space is at a premium
  • For domestic, industrial and agricultural applications

Popular uses of insulated tanks with a slimline profile include:

  • Static rainwater storage
  • Water storage for gardens and irrigation systems
  • Loft header tanks
  • Potable water storage
  • Storage of liquids where space is at a premium
  • For domestic, industrial and agricultural applications

Manufacture

Enduratank insulated vertical tanks are constructed from rotationally moulded, medium-density, UV stabilised, food-grade polyethylene. Insulated slimline vertical tanks are constructed as a one-piece polyethylene moulding. All tanks are wrapped in an insulation jacket that prevents condensation and effectively reduces thermal and energy loss.

Technical specification

150L, 600mm dia x 650mm H
300L, 600mm dia x 1200mm H
500L, 700mm dia x 1500mm H
500L, 870mm L x 650mm W x 1200mm H (slimline profile)
720L, 700mm dia x 2150mm H
1,000L, 1650mm L x 670mm W x 1200mm H (slimline profile)
1,250L, 1200mm dia x 1200mm H
2,000L, 1200mm dia x 1900mm H
2,500L, 1400mm dia x 1800mm H
3,000L, 1400mm dia x 2135mm H
4,000L, 1900mm dia x 1875mm H
5,000L, 1900mm dia x 2300mm H
6,000L, 1900mm dia x 2500mm H
6,500L, 2600mm dia x 1500mm H
7,000L, 2400mm dia x 1820mm H
8,500L, 2600mm dia x 2063mm H
10,000L, 2400mm dia x 2500mm H
12,500L, 2600mm dia x 2650mm H
14,000L, 2600mm dia x 2900mm H
15,000L, 2400mm dia x 3550mm H
16,800L, 2600mm dia x 3410mm H
20,000L, 2850mm dia x 3600mm H
20,800L, 2600mm dia x 4150mm H
22,000L, 3450mm dia x 2600mm H
25,000L, 2700mm dia x 4650mm H
26,000L, 3450mm dia x 3200mm H
30,000L, 3450mm dia x 3650mm H


Please note: tank sizes quoted are subject to a +/- 3% variation.
