Micropilot FMR20 is a sensor with Bluetooth® wireless technology for continuous level measurement for liquids in storage tanks, open basins, pump shafts and canal systems. It has applications in the water and wastewater industry and for utilities in all industries.

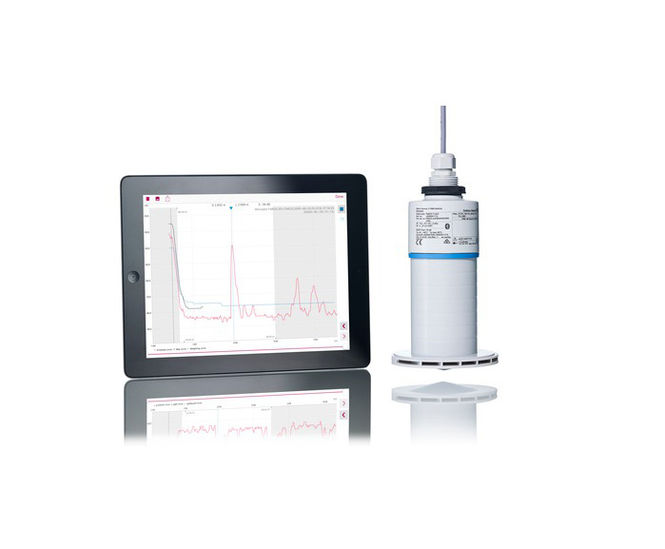

Micropilot FMR20 belongs to the first non-contact radars with Bluetooth® commissioning, operation and maintenance app. Signal curves can be shown via app on every Bluetooth®-enabled smartphone or tablet (iOS, Android). Operation is also possible via HART or remote display.

Applications

Micropilot FMR10 is suitable for water and wastewater and utilities in all industries. It can be used for level measurements outdoors and indoors, and where space is limited.

  • Storage tanks
  • Open basins
  • Pump shafts
  • Canal systems

Key benefits

  • Continuous non-contact level measurement.
  • App using Bluetooth® (iOS, Android) for commissioning, operation and maintenance.
  • Mobile access to device, diagnostics and process information even in hazardous areas.
  • Easy set-up with three main parameters suits for most applications.
  • Full PVDF body to resist outdoor conditions.
  • Sealed wiring and fully potted electronics eliminates water ingress and allows operation under harsh environmental conditions.
  • Compact design, it fits in limited space applications.

Operating principle

The Micropilot is a "downward-looking" measuring system, operating based on the time-of-flight method. It measures the distance from the reference point (process connection) to the product surface. Radar impulses are emitted by an antenna, reflected off the product surface and received again by the radar system.

Installation

The Micropilot FMR20 sensor can be wall-mounted, fixed or with adjustable angle, or installed with cantilever and pivot for positioning of the sensor over the surface.
Multiple devices can be operated in one tank without influencing each other.

Technical data

Measuring range
Up to 10m with 40mm (1.5”) antenna, or up to 20m with 80mm (3”) antenna

Accuracy
Up to ±2mm (0.08”)

Beam angle
30°

Process temperature
-40 up to +80°C (-40 up to +176°F)

Process pressure
-1 to +3bar (-14.5 to +43psi)

Ingress protection
IP66 and 68; NEMA 4X and 6P.

Accessories

Weater protection cover
Recommended for outdoor use.

Flooding protection tube
In free-field installations and in applications where there is a risk of flooding, it guarantees operation even in the event that the sensor is completely flooded.
