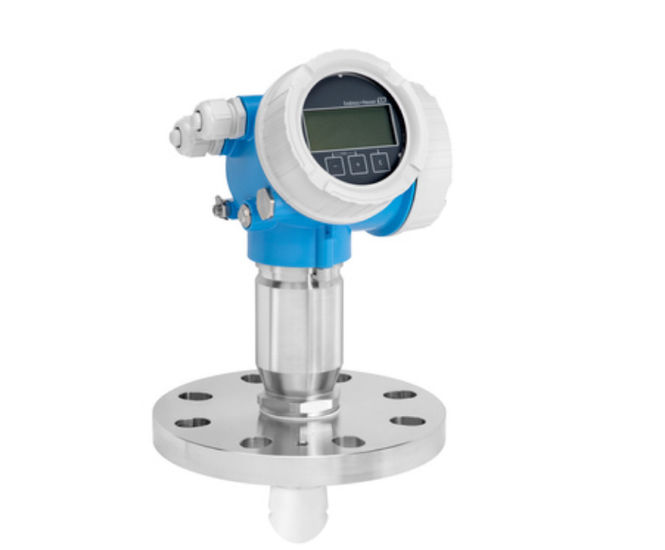

Micropilot FMR60 is an 80GHz radar device that allows the continuous non-contact level measurement of liquids, pastes and slurries. It can measure up to 50m and uses a small beam angle, which makes it suitable for use in vessels with many internal fittings.
The level measurement is not affected by changing media, temperature changes, gas blankets or vapors.
Key features
Suitable for use with liquids, pastes and sludges
In situ device verification with Heartbeat Technology
Safety Integrated levels SIL 2/3 according to IEC 61508
Multi-Echo Tracking suppresses signal interferences
HistoROM data storage
RFID TAG for easy device identification
Very small beam angle
Technical specification
Max. measurement distance 50m (164ft)
Measurement accuracy +/- 1 mm (0.04 in)
Process temperature range -4 to +130 °C (-4 to +266 °F)
Process Pressure range Vacuum to 16bar (Vacuum to 232psi)
W-band 80GHz
Material PTFE antenna PP or 316L process connections
