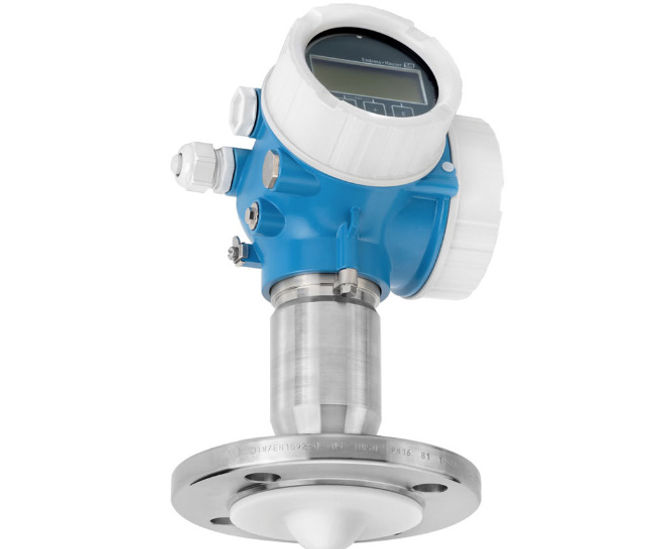

Micropilot FMR62 is an 80GHz radar device that allows the continuous non-contact level measurement where aggressive liquids are used. The device is suitable for use in hygienic applications. It can measure up to 80m and uses a small beam angle, which makes it suitable for use in vessels with many internal fittings.

The level measurement is not affected by changing media, temperature changes, gas blankets or vapors.

Key features

  • Suitable for use with aggressive media
  • Suitable for hygienic applications
  • In situ device verification with Heartbeat Technology
  • Safety Integrated levels SIL 2/3 according to IEC 61508
  • Multi-Echo Tracking suppresses signal interferences
  • HistoROM data storage
  • RFID TAG for easy device identification
  • Very small beam angle

Technical specification

Max. measurement distance
80m (262ft)

Measurement accuracy
+/- 1 mm (0.04 in)

Process temperature range
-40 to +200 °C (-40 to +392 °F)

Process Pressure range
Vacuum to 25bar (Vacuum to 362.6psi)

W-band
80GHz

Material
PTFE or PEEK antenna
316L threads, PTFE cladded flanges

Connections
Thread or flange

Certificates & approvals

  • Explosion protection: ATEX, IEC Ex
  • Safety: Overfill protection WHG; SIL 2 and SIL 3
  • Design: 10204-3.1, NACE MR0175, MR0103, AD2000
  • Hygienic: CoC-ASME BPE
