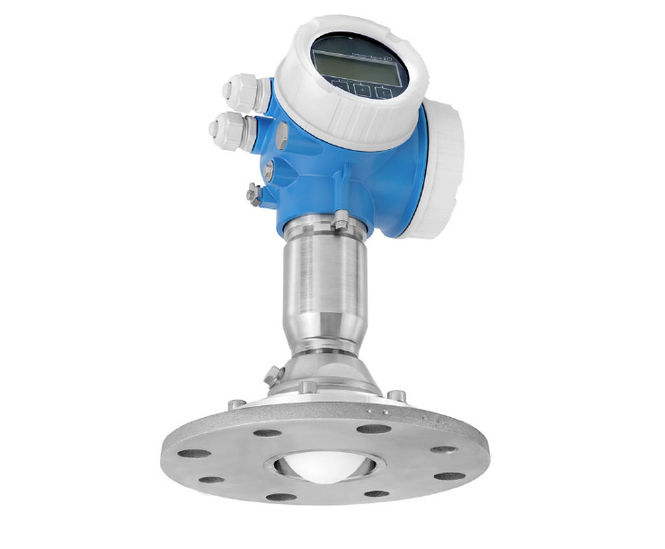

Micropilot FMR67 is an 80GHz radar device that allows the continuous non-contact level measurement of powders and granular bulk solids in high silos, bunkers or stockpiles. It can measure up to 125m and uses a small beam angle, which makes it suitable for use in vessels with many internal fittings.

Key features

  • Suitable for bulk solids

  • In situ device verification with Heartbeat Technology

  • Safety Integrated levels SIL 2/3 according to IEC 61508

  • Multi-Echo Tracking suppresses signal interferences

  • HistoROM data storage

  • RFID TAG for easy device identificationVery small beam angle

Technical specification

Max. measurement distance
125m (410ft)

Measurement accuracy
+/- 3 mm (0.12 in)

Process temperature range
-40 to +200 °C (-40 to +392 °F)

Process Pressure range
Vacuum to 16bar (vacuum to 232psi)

W-band
80GHz

Material
PTFE, 316L
Alignment device: aluminium

Connections
Thread or flange

Certificates & approvals

SIL 2, SIL 3
