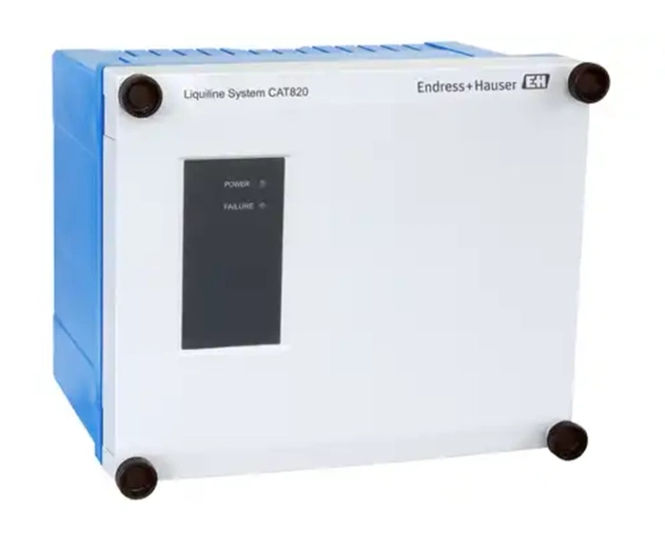

Liquiline System CAT820 is an in-situ filtration system for preparing samples for colorimetric measurements in wastewater treatment plants, surface water reservoirs and industrial processes.

The ceramic filter facilitates the preparation of accurate and repeatable measurements, particularly for dissolved ammonia and phosphate.

CAT820 can be combined with the modular Flexdip holder to cater for specific processes.

  • Fast commissioning and plug & play due to Memosens technology
  • Supports predictive maintenance
  • Tool-free maintenance and easy replacement of filter elements
  • Advanced diagnostics with remote access for increased process safety
  • Optional back-flush function for extended maintenance intervals and minimised effort
  • Various mounting options to suit application

Applications

Liquiline System is designed for sampling:

  • aeration basins and outlets of municipal and industrial wastewater treatment plants
  • surface waters
  • taking aqueous samples from industrial processes

Specifications

Analyser Measuring Principle
Colorimetric

Characteristic
Automatic sample preparation system for supplying process measuring devices with filtered samples

Size
194 (h) x 237 (w) x 162mm (d)

Design
Back-flush filter system with various filter mounting options: float, chain and immersion pipe. Full compatibility to holder CYH112.

Process temperature
4-40°C (39-104°F)

Ambient temperature
Unheated 5-50°C (41-122°F)
Heated -20-50°C (-4-122°F)

Process pressure
Unpressurised

Specials
Optional back-flush with pressurised air (version with Memosens technology). Controling and parametrization via Liquiline System CA80. Stand-alone version with time control available.

Applications
Sampling from aeration tank and secondary clarification of municipal and industrial wastewater treatment plants.
Sampling of aqueous media from industrial processes.

Filtrate quantity
With Memosens technology:
• 5.5-16.5 ml/min
• Factory setting: 8.25 ml/min

Power supply
100-120 / 200-240 V AC 10%, 50/60 Hz

Consumables
Cleaner CY820 for filter and hoses

Sampling process

A peristaltic pump is used to take the sample. The sample is drawn in via the filter element, filtered and fed to the analyser. An optional cleaning valve enables backflushing of the filter unit with compressed air.

System components

A complete sample conditioning system comprises:

  • Liquiline System CAT820 sample preparation system
  • Controller with soft keys and status LEDs
  • Peristaltic pump
  • Ultrafiltration membrane
  • Filter unit with filter and assembly in the configuration ordered
  • Flexdip CYH112 holder for mounting the unit
  • Compressed air cleaning (optional) for longer filter maintenance intervals
  • Sample hose, filter to pump in the configuration ordered
  • Cleaner (to be ordered separately)
