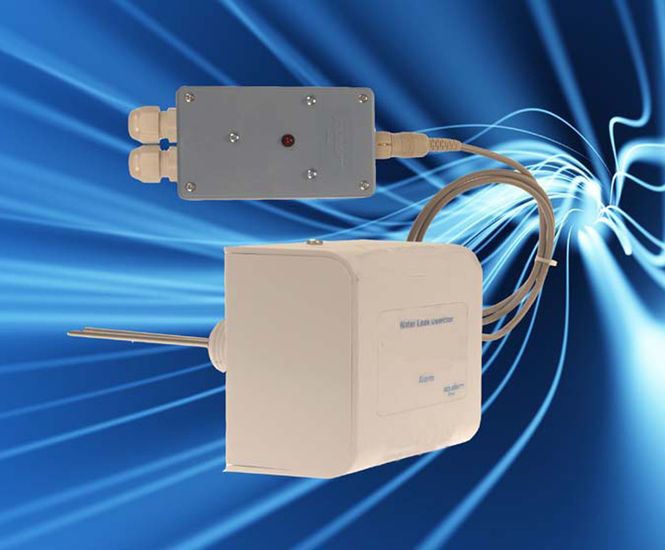

The Aqualarm OFDi-24 overflow detector is made up of two components: the detector module and the overflow detector, connected via a 2m jumper cable.

Both the detector module and overflow detector are manufactured from STAREX General ABS (SD-0150) plastic.

The bottom of the overflow detector is fitted with a ¾” BSP threaded connector with two stainless steel sensing probes extending from the end. The connector should be inserted into a ‘tee’ to enable the probes to sense any water passing through the main overflow pipe.

A red LED is incorporated onto the detector module, and will glow to indicate the detection of water.

Alarm monitoring and status is via a network, using a CAN bus system.

  • For detection of water within an overflow pipe
  • ¾” BSP threaded connector for insertion into a tee piece
  • Manufactured from rust-proof and hard-wearing ABS plastic
  • Two component design - keeping head and electronic module separate
  • LED and internal alarm sounder in module to give local alarm indication
  • For connection to i-Zone or i-Zone Touch control panels

Data

  • Normal operating voltage: 24 volts DC
  • Quiescent current: <10mA per detector
  • Alarm current: <100mA per detector
  • Detector oscillator frequency: 6kHz
  • Voltage at probes: 2 volts AC
  • Recommended interconnecting cable: 120Ohm 4 core 0.5mm2; screened twisted pair
  • Line-out voltage drop: 1.5mV/m

Approvals

  • BS EN ISO 9001:1994
  • EMC Directive 89/336/EEC

Dimensions

  • Module: 45 (h) x 70 (w) x 135mm (l)
  • Detector: 55 (h) x 80mm (w)
  • BSP thread depth: 30mm
