Aqueous water cleaning systems produce from 0.14 to 2.85 m3/hr of high purity water for applications such as printed circuit board defluxing and cleaning, stencil cleaning and high quality metal component rinsing.

The systems incorporate a range of mixed bed and carbon cylinders that are capable of operating at temperatures up to 70°C.

Key features

Deionisation resin - all units use a mixture of strong base regenerable ion-exchange resin, which has been selected for the removal of all major ionic impurities.

Meters - various meters are available using either mains or battery power, providing readouts between 1 and 18 MΩ/cm resistivity. For use at high temperatures, a temperature compensated version is available.

Activated carbon - a specially selected and conditioned activated carbon media is used. This media
effectively reduces organic levels and colour within the rinse water. The cylinder is usually exchanged with every other change of the deioniser cylinder.

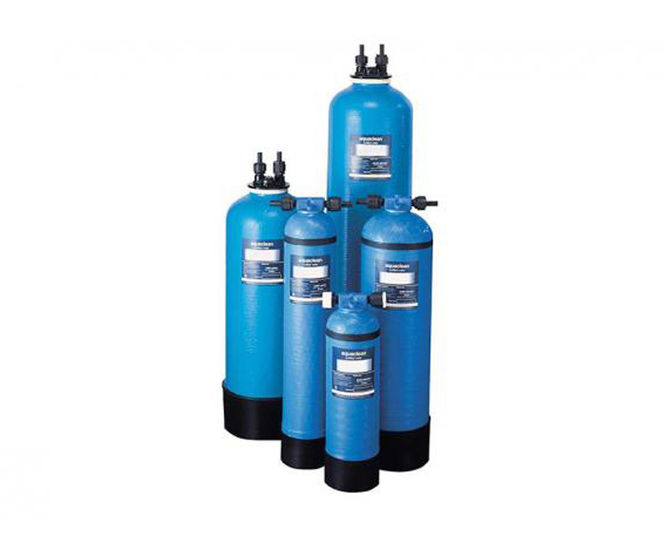

Cylinder range - the pressure vessels are constructed from a seamless GRP, polyethylene composite. Special internal components allow for operation at up to 70°C at reduced pressures.
