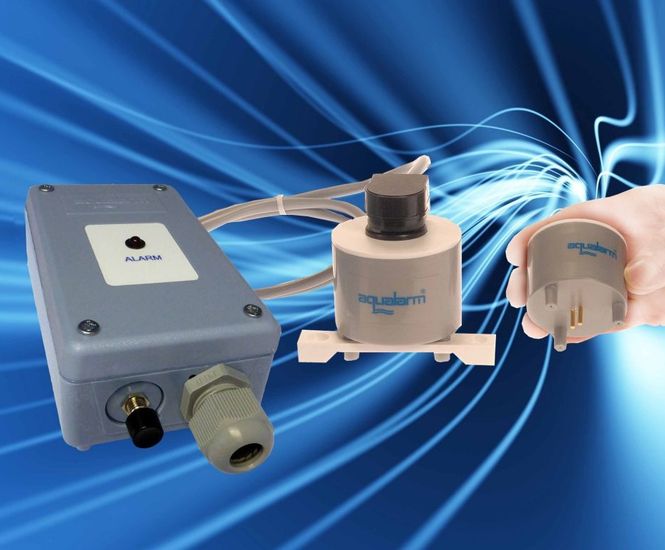

UDP-24 point-of-use water detector comprises two components: a detector module and a point detector connected together via a 1m jumper cable.

It needs a 24 volt power source. In the event of an alarm a volt-free contact is triggered, giving an alarm signal back to a BMS etc.

Operation

The Detector Module houses electronic circuitry; the Point Detector houses gold-plated detection pins. The jumper cable is connected to the top of the Point Detector via a 3-pin plug and socket. Conductive fluid touching the two detection pins simultaneously will cause the detector to enter an alarm condition. The ‘clean signal’ can be selected as normally open or normally closed via the PCB. A reset switch is located on the end of detection module plus a gland for connection from a 24 volt power supply to the PCB, and the return ‘clean signal’.

A stabilising bar is required as a means of fixing the point-of-use detector to the floor surface.

Key features

  • 24v power source required

  • Does not require an i-Zone control panel

  • For use within Plant rooms and other solid floor areas

  • For detection of conductive water

  • Manufactured from rust-proof, hardwearing ABS plastic

  • Gold-plated detecting pins

  • 2-component design – keeping head and electronic module separate

  • LED and internal alarm sounder in module to give local alarm indication

  • Multiple types of protection covers are available to prevent mechanical damage

Specifications

Normal operating voltage: 24 volts A/C or D/C

Quiescent current: <10mA per detector

Alarm current: <100mA per detector

Detector oscillator frequency: 6kHz

Recommended interconnecting cable: 4 core 0.5mm2 screened | screened twisted pair

Line-out voltage drop: (type CY)

Composition

The Detector Module and the Point Detector are manufactured from STAREX General ABS (SD-0150) plastic.

Approvals

BS EN ISO 9001:1994
EMC Directive 89/336/EEC

Dimensions

Module
Height: 45mm
Width: 70mm
Length: 135mm

Detector
Height: 65mm
Width: 55mm
