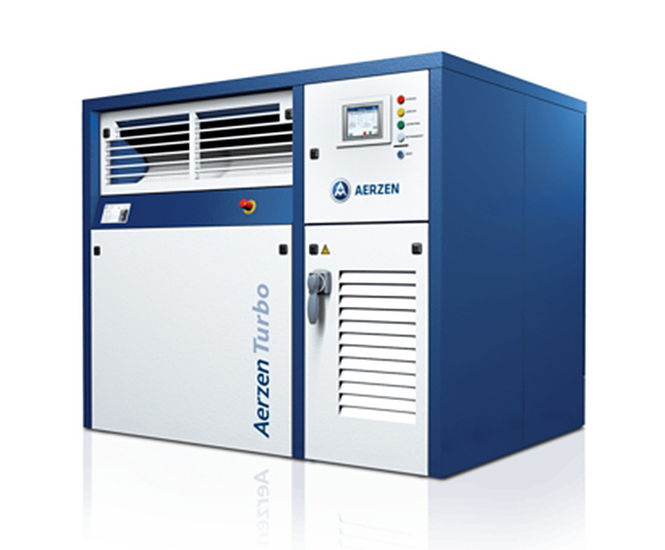

Aerzen Turbo Generation 5 turbo blowers are made for medium to high air volume flows in wastewater treatment, using air bearings and a permanent magnet motor for high energy efficiency and low maintenance. Oil-free operation, compact plug-and-play design, and speed control support easy installation and quiet, vibration-free performance. Volume flow ranges from 3,000 to 16,200 m³/h with differential pressure from 600 to 1,000 mbar.

  • Turbo blower range for air compression in wastewater treatment, with oil-free, energy-saving operation

  • Energy savings up to 30% and operational efficiency up to 80%

  • Plug-and-play package with all components integrated for simple installation

  • Low noise and vibration due to air bearings and compact design

  • Speed-controlled for precise load adjustment

  • Minimal maintenance requirements and long service life

  • 100% oil-free and PFAS-free air compression

Applications

  • Municipal wastewater treatment plants

  • Industrial wastewater treatment facilities

  • Aeration tanks

  • Large-scale air conveying systems

  • Energy-efficient air supply for process industries

Performance

Volume flow 3,000–16,200 m³/h
Differential pressure 600–1,000 mbar
Operational efficiency up to 80%
Energy savings up to 30%
Control range 40%–100%
Permanent magnet motor efficiency up to 96%
Theoretical bearing lifetime over 80,000 operating hours

Materials

Air foil bearings with Teflon and graphite coating
Oil-free air path
PFAS-free construction

Installation

Plug-and-play design for easy setup
No foundations or special base required
Minimal sitework due to integrated package

Maintenance

Low maintenance needs
No oil changes required
Long bearing life regardless of start/stop cycles
