The Hydro-Brake® Orifice flow control provides water quantity management for surface, foul or combined water. It is ideally suited to sites where there are minimal on-site storage/attenuation constraints, generous discharge consents or the need for a low-cost, low-complexity flow control solution.

Materials

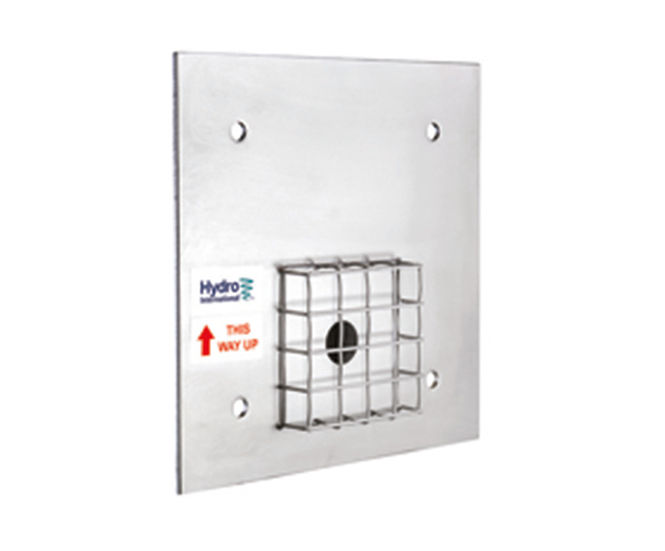

Hydro-Brake® Orifice features precision cut sharp-edged stainless orifice plate, neoprene gaskets and fixing bolts. It is manufactured to BS EN ISO 5167-2:2003. Each instance is manufactured to suit the precise hydraulic requirements of the individual application.

Key benefits

  • Manufactured from high-grade stainless steel
  • Configurations to suit a wide range of applications
  • Self-activation
  • Low maintenance, with no moving parts or external power requirements
  • Low-cost, low-complexity control
  • Simple installation
  • Helps deliver affordable, sustainable draingage
  • Helps demonstrate compliance with SuDS guidelines

Technical data

  • Maximum flow: 100 litres/sec
  • Maximum head: 2.0m
  • Approx. maximum storage area: 50ha
