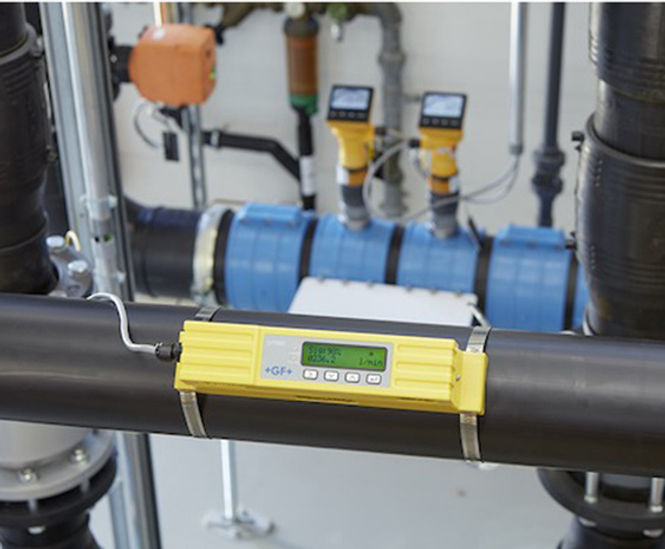

The U1000 V2 clamp-on ultrasonic flowmeter offers non-contacting measurement with uncomplicated mounting and minimum maintenance. The flowmeter can be retrofitted and seamlessly integrated without intervention in the piping system or in the production process.

The U1000 V2 works virtually maintenance-free while providing accurate measurement results for many years.

Suitable for all dimensions from d22 to d180 and is largely independent of the medium, piping material and installation site.

Includes Modbus, expanded pipe size and media measurement capabilities.

Technical data

  • Measuring range: 0.1-10m/s

  • Pipe size: d22-d180

  • Pipe material: plastic, steel, metal

  • Output: 4-20mA, pulse, Modbus

  • Power supply: 12-24 V AC/DC

Features

  • One sensor for pipe range d22-d180

  • Large and easy to read display

  • Contactless measurement

  • Compact clamp-on design
