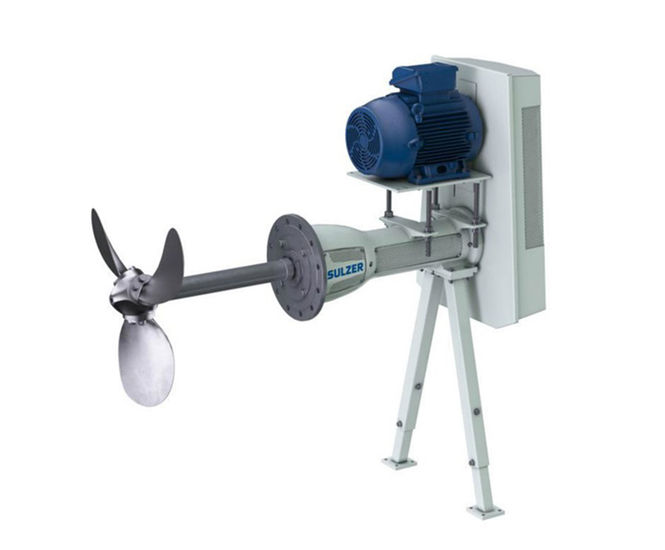

SALOMIX™ SSA side-mounted agitators are suitable for the most demanding industrial liquid mixing applications. They are designed to decrease the power consumption by using ground-breaking efficient hydraulics. The innovative design and rigid construction make it efficient, reliable and service-friendly, while significantly reducing total cost of ownership.

Features

  • High-efficiency propeller with adjustable blade angle to adjust performance without any investments
  • Wide range of seal selections from gland packing to double mechanical seals
  • Reliable belt drive unit designed for tough applications
  • Low spare part costs due to high standardisation

Benefits

  • Excellent performance in all industrial segments
  • High-efficiency propeller with large axial thrust
  • Suitable for the most demanding industrial applications
  • Heavy-duty design with a bearing lifetime of minimum 200,000 hours
  • Low total cost of ownership through smart design and energy-efficient propeller
  • Quick and easy installation, safe operation, easy maintenance and service

Characteristics

  • Propeller diameters: 800-1300mm / 32-52"
  • Power: 7.5-75kW / 10-100hp
  • Maximum speed of rotation: up to 300rpm
  • Performance range: SALOMIX agitators have a wide and comprehensive hydraulic coverage which enable their use in all mixing applications
  • Temperatures: up to 180°C / 355°F
  • Stock concentration: up to 6%

Applications

  • Clean and slightly contaminated liquids
  • Viscous liquids
  • Fibrous and other slurries
