Product name USM level meter
Applications Tanks
System technology Ultrasonic level measurement
Features Datalogging
Non contact
Accuracy (±%) 0.1

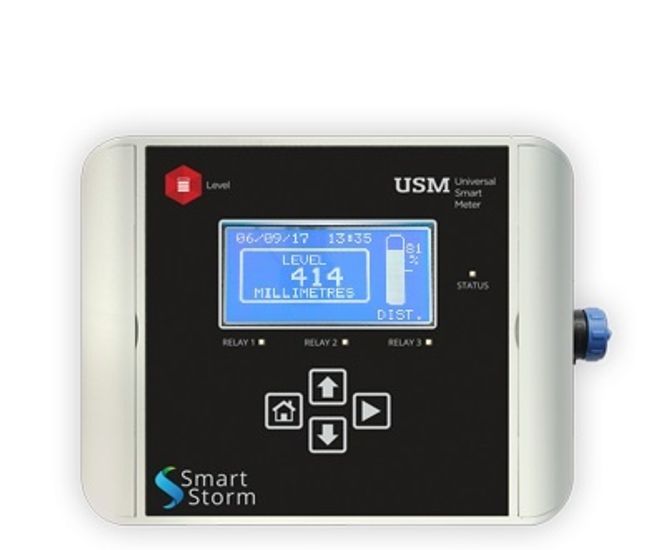

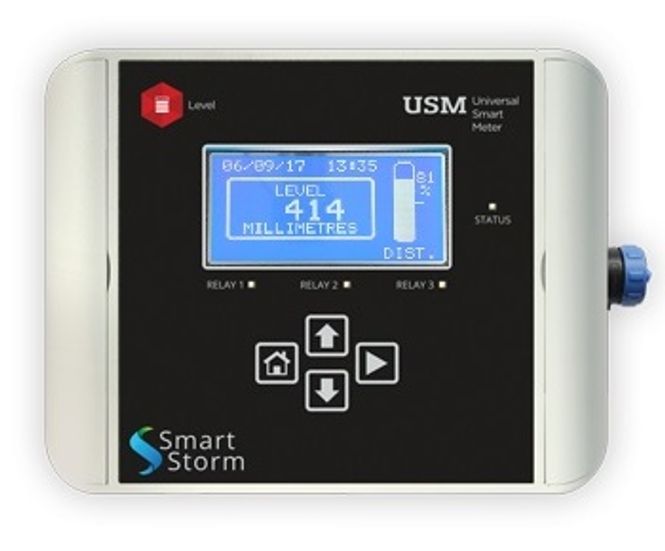

Wall-mounted USM level meter for measuring level, volume and tonnes in tanks and silos using Smart Storm Digison3 ultrasonic sensor. Can be programmed to measure in all standard tank shapes and well as non-standard tanks using a 32-point look-up table. With a 3” vibrant LCD graphics display and a 4-button interface, programming is extremely simple and user-friendly in both metric and imperial units. Supplied complete with a 20-year internal data logger, a 4-20mA output, a RS485 Modbus communications port and 3 fully programmable relays.

Features

  • Low-cost level meter for liquids and solids
  • 9 standard tank shapes and 32-point look-up table
  • Quick and simple user-friendly programming
  • Integral 20-year datalogger
  • PC-based reporting software
  • IP 66/4X wall-mounted weatherproof enclosure
  • 3 programmable relays
  • 4-20mA output

Applications

  • Level, volume and tonnes measurement
  • Solids and liquids measurement
  • Pump control
  • Position measurement
  • Non-contact measurement
  • Chemical, food, mining, pharmaceutical and many more industries


Wall-mounted USM level meter for measuring level, volume and tonnes in tanks and silos using Smart Storm Digison3 ultrasonic sensor. Can be programmed to measure in all standard tank shapes and well as non-standard tanks using a 32-point look-up table. With a 3” vibrant LCD graphics display and a 4-button interface, programming is extremely simple and user-friendly in both metric and imperial units. Supplied complete with a 20-year internal data logger, a 4-20mA output, a RS485 Modbus communications port and 3 fully programmable relays.

Features

  • Low-cost level meter for liquids and solids
  • 9 standard tank shapes and 32-point look-up table
  • Quick and simple user-friendly programming
  • Integral 20-year datalogger
  • PC-based reporting software
  • IP 66/4X wall-mounted weatherproof enclosure
  • 3 programmable relays
  • 4-20mA output

Applications

  • Level, volume and tonnes measurement
  • Solids and liquids measurement
  • Pump control
  • Position measurement
  • Non-contact measurement
  • Chemical, food, mining, pharmaceutical and many more industries





Downloads
  • USM universal smart meter
    USM universal smart meter
    4pp 2.84MB
    Download
  • USM level meter - specifications
    USM level meter - specifications
    1pp 176.84KB
    Download
  • USM level meter - user guide
    USM level meter - user guide
    46pp 1.29MB
    Download
