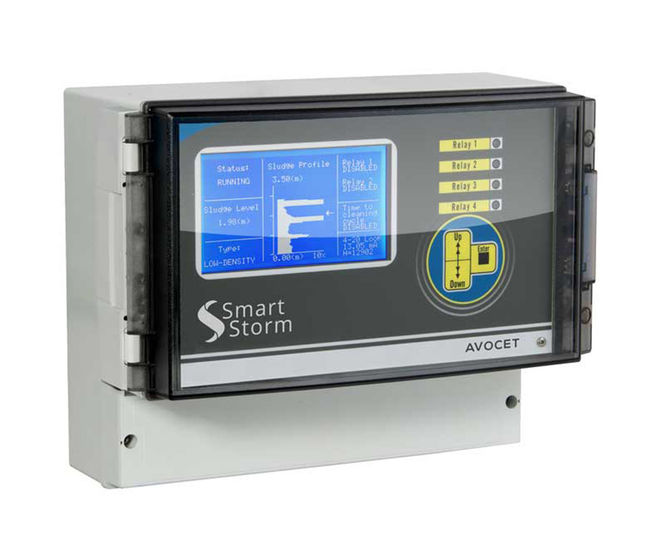

The Avocet Sludge Blanket monitors sedimentation and scum accumulation in remote settlement tanks and clarifiers in water treatment works, waste water reclamation works and factories with treatment plant.

Particularly suited for identifying auto-desludging and overspill alarm signals and for monitoring the general biological health of thick sludge blankets. Gives highly accurate measurements of sludge blanket composition in settlement tanks and clarifiers by utilising extremely high frequency ultrasound sensors (1.1MHz) that can detect the lowest sludge density found in secondary clarifiers.

Features

  • Graphical display of sludge interface
  • Powerful signal processing to extract low-density sludge interface
  • Simple programming
  • IP 65 wall-mounted weatherproof enclosure
  • 3 programmable relays
  • Air-purged sensor cleaning
  • 4-20mA output
  • RF link

Applications

  • Water and waste water
  • Primary sedimentation
  • Secondary and final clarifiers
  • Remote settlement tanks
  • Sludge thickeners
  • DAF tanks
  • Sequential batch reactors
  • Lamella clarifiers
  • Counter current decantation (CCD) tanks
  • Mining and process settling ponds and lagoons
