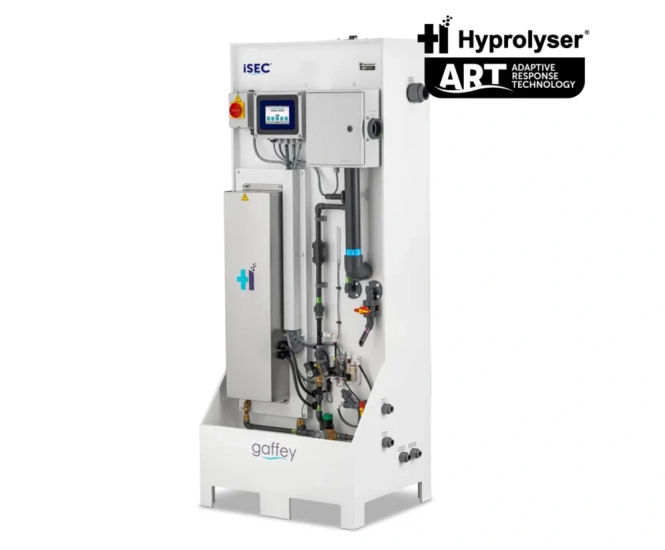

The Hyprolyser® iSEC® 3 range are high capacity skid electrochlorination systems for chlorine demands up to 2000g/h. They are compact yet powerful, treating up to 48MLD drinking water or 4000m3 swimming pool volumes, efficiently and effectively, whilst minimising valuable floor space requirements.

Features:

  • No external hazardous zones (DSEAR compliant)

  • Environmentally protected (IP54) power supply enclosure with integrated water cooling system, isolated safely away from electrical components

  • Unique state-of-the-ART Adaptive Response Technology built in, allowing the system to adjust to changes in environmental or site conditions, delivering precise and consistent chlorine generation

  • Precise volumetric measurement of the dilution water and vacuum brine feeds for an efficient electrolysis process

  • Unique Plug & Play concept pre-commissioned and ready for automatic start-up

  • Electrochlorination technology uses no hazardous chemicals keeping COSHH simple

  • HSE/BPR compliant

  • Easy HMI Touchscreen icon navigation, process mimic with simple operation and maintenance annotation guidance

  • As standard, easy remote monitoring through Email, VNC, Modbus and MQTT

Specifications

Capacity (kg/day Cl2)

Up to 48

Capacity (lbs/day Cl2)

Up to 106

Concentration (g/L Cl2)

6 ±1

Power Supply (V~)

110-230V~ / 208-415 3N V~
