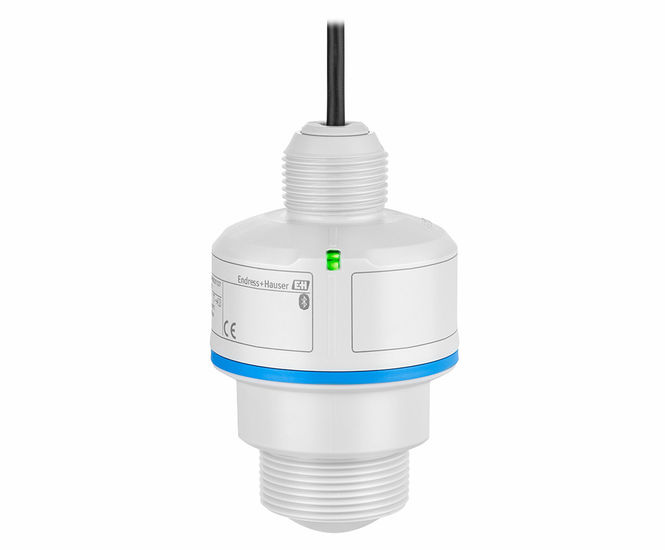

Micropilot FMR10B supplies continuous non-contact level measurement with 80 GHz technology. It is the perfect match for basic applications in the water and wastewater industry as well as for mining, minerals and metals and utilities across all industries. Guiding wizards guarantee simplicity in installation and commissioning. It is also ideal for limited space applications thanks to its compact design.

Micropilot FMR10B is a free space radar device with a measuring range of up to 10m (33ft) for basic applications in liquids and solids.

Applications

  • Open basins

  • River monitoring

  • Storage tanks

  • Silos

  • Stockpiles

Benefits

  • LED indicator for fast status detection

  • Easy, guided commissioning with intuitive user interface

  • Radar measuring device with Bluetooth® wireless technology

  • Simple, safe and secure wireless remote access – ideal for installation in places difficult to reach

  • Commissioning, operation and maintenance via free iOS/Android app SmartBlue – saves time and reduces costs

  • Flow measurement in open channels or weirs with totalizer

Specifications

  • Accuracy: +/- 5mm (0.2")

  • Process temperature: -40…+60°C (-40…+140°F)

  • Process pressure / max. overpressure limit: -1…3 bar (-14,5…43 psi)

  • Max. measurement distance: 10m (32.8 ft)

  • Main wetted parts: PVDF, PBT/PC
