The Amphitec Vortex delivers a solution for sucking and blowing wet and dry materials.

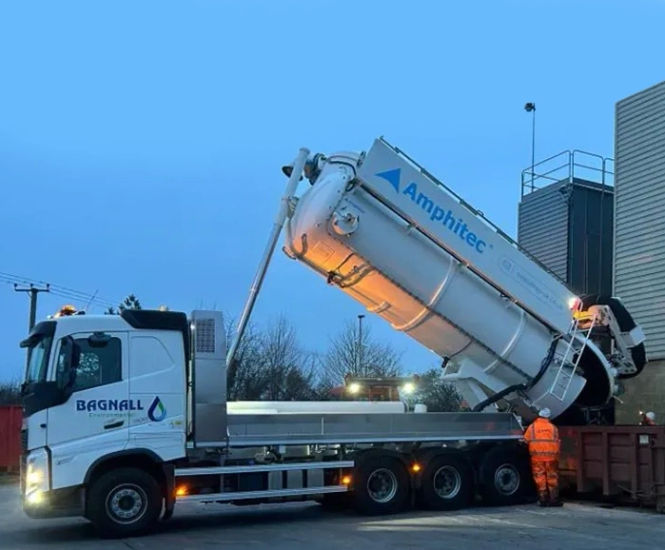

The state-of-the-art suction and blowing vehicle is built to handle the toughest site conditions. Whether dealing with compacted sludge, dry powder, contaminated sand or general waste, the Amphitec unit is engineered for precision, power and environmental care.

This high-performance system offers a cleaner, safer and more efficient alternative to traditional material handling methods - minimising manual labour, reducing disposal costs, and keeping operations compliant with environmental standards.

With more than 25 years of industry experience, Bagnall has completed a wide range of critical projects across the UK using this cutting-edge technology. The company delivers sustainable, compliant and cost-saving services that help clients meet their project deadlines and environmental goals with confidence.

Key features

  • Powerful suction capabilities for various materials.

  • Efficient blowing system for dry materials, fitted with a Roots 11,000 blower.

  • Capable of sucking up to distances of 500m and depths of over 50m, depending on the material.

  • Versatile tipping options, including tipping into skips approx. 1.8m high.

  • Suitable for handling both wet and dry materials.

  • Remote control boom (up to 10').

  • 14m3 barrel capacity.

Blowing system

  • Functionality: allows for the discharge of free-flowing dry materials through a hose, including discharge into a silo or ballast / gravel onto a flat roof.

  • Operation: after filling and subsequent tipping of the tank, products flow into the blowing outlet. The product is pneumatically transported through the blowing hose using airflow and pressure supplied by the vacuum pump via an internal aeration and venturi system.

  • Performance: capable of blowing up to 40mm dry material over 200m horizontally and 70m vertically.

Applications

  • Sand and gravel removal: clean and quick extraction from tanks, filters and construction sites.

  • Sludge and wet waste removal: powerful vacuum extraction for high-moisture materials.

  • Dry material transport: blowing of powders and granular solids over long distances.

  • Silo emptying: fast, safe cleaning of silos and hoppers with minimal dust or spillage.

  • Wood chip extraction: efficient removal from odour control units and biofilter systems.

  • Ballast blowing: accurately deliver materials to elevated surfaces or confined spaces.

Additional features

  • Hydraulic hammers: a set of hydraulic hammers under the main tank and filter housing to help remove material that sticks in the barrel when tipping.

  • Jet wash: high-powered jet wash with a 500-litre water tank.

  • Compressed air system: includes an air pick for additional functionality.
