- Product name
- DS Series
- Media compressed
- Air
- Neutral gases
- Compressor type
- Rotary screw compressors
- Operation
- Oil free
- Product accreditation
- ISO 8573-1 Class 0
- Maximum flow capacity (m3/h)
- 2920
- Minimum flow capacity (m3/h)
- 180
- Maximum pressure (bar)
- 10.5
- Maximum power (kW)
- 315

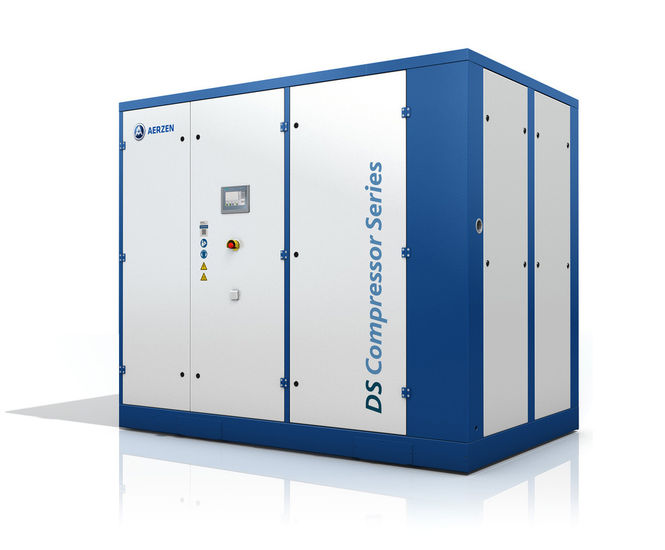

AERZEN DS Series double-stage screw compressors deliver oil-free compressed air or neutral gases, meeting ISO 8573-1 Class 0 standards. Designed for differential pressures from 5.5 to 10.5 bar and volume flows between 180 and 2920m³/h, these compact, plug-and-play units suit sensitive and demanding industrial applications.
Oil-free, double-stage screw compressor for air and neutral gases
Energy savings up to 12% compared to standard models
Variable frequency drive (VFD) for wide volume flow control
Compact footprint for space-limited installations
IE4 or IE5 energy efficiency class motors
Stainless steel rotors resist corrosion
Low noise levels and extended maintenance intervals
Reliable operation in extreme ambient conditions
Applications
Chemical and petrochemical processing
Electronics and semiconductor manufacturing
Food and beverage production
Textile industry
Medical technology
General industrial compressed air supply
Performance
Volume flow: 180-2920m³/h
Differential pressure: 5500-10,500 mbar
Bearing life: up to 40,000 hours
Materials
Stainless steel rotors
Accreditations
ISO 8573-1 Class 0 oil-free air
Maintenance
Extended maintenance intervals
Positive pressure
Series |
Performance data |
Dimensions and weights |
|||||
|---|---|---|---|---|---|---|---|
Pressure difference, mbar |
Volume flow*, m3/h |
Motor power, kw |
Width, mm |
Depth, mm |
Height, mm |
Weight, kg |
|
DS 55 A/W** | 8 bar |
8.000 |
475 |
55 |
1.400 |
2.500 |
2.000 |
3.060 |
DS 55 A/W** | 10 bar |
10.000 |
397 |
55 |
1.400 |
2.500 |
2.000 |
3.060 |
DS 75 A/W** | 8 bar |
8.000 |
719 |
75 |
1.600 |
2.800 |
2.000 |
3.270 |
DS 75 A/W** | 10 bar |
10.000 |
587 |
75 |
1.600 |
2.800 |
2.000 |
3.270 |
DS 90 A/W** | 8 bar |
8.000 |
804 |
90 |
2.200 |
2.800 |
2.000 |
3.370 |
DS 90 A/W** | 10 bar |
10.000 |
648 |
90 |
2.200 |
2.800 |
2.000 |
3.370 |
DS 110 A/W** | 8 bar |
8.000 |
1.079 |
110 |
2.200 |
3.300 |
2.000 |
4.080 |
DS 110 A/W** | 10 bar |
10.000 |
943 |
110 |
2.200 |
3.300 |
2.000 |
4.080 |
DS 132 A/W** | 8 bar |
8.000 |
1.273 |
132 |
2.100 |
3.400 |
2.400 |
4.680 |
DS 132 A/W** | 10 bar |
10.000 |
1.143 |
132 |
2.100 |
3.400 |
2.400 |
4.680 |
DS 160 A/W** | 8 bar |
8.000 |
1.542 |
160 |
2.200 |
4.000 |
2.200 |
5.000 |
DS 160 A/W** | 10 bar |
10.000 |
1.350 |
160 |
2.200 |
4.000 |
2.200 |
5.000 |
DS 200 A/W** | 8 bar |
8.000 |
2.056 |
200 |
2.000 |
4.000 |
2.600 |
5.200 |
DS 200 A/W** | 10 bar |
10.000 |
1.714 |
200 |
2.000 |
4.000 |
2.600 |
5.200 |
DS 250 A/W** | 8 bar |
8.000 |
2.447 |
250 |
2.000 |
4.000 |
2.600 |
5.450 |
DS 250 A/W** | 10 bar |
10.000 |
2.195 |
250 |
2.000 |
4.000 |
2.600 |
5.450 |
DS 315 A/W** | 8 bar |
8.000 |
2.920 |
315 |
2.000 |
4.000 |
2.600 |
5.650 |
DS 315 A/W** | 10 bar |
10.000 |
2.663 |
315 |
2.000 |
4.000 |
2.600 |
5.650 |
Sound pressure level without blow-off noise, with acoustic enclosure.
* Corresponds to the measured delivery volume flow converted to the customer-specific suction conditions p = 1,0 bar, t =20°C, rF = 0%
**Cooling: A: air-cooled and W: water-cooled
