Gordon Low Products Ltd manufactures water liners using EPDM and Butyl Rubber liners, for above-ground steel tank kits and drinking water tanks for rainwater harvesting and water storage.

  • Water storage tanks liners for rainwater harvesting and water management

  • Made from EPDM and Butyl Rubber for durability and water safety

  • Suitable for drinking water, irrigation, and aquatics

  • Above-ground steel tank kits and replacement liners available

  • Steel tanks made from BS2989 compliant cold-rolled galvanised steel

  • Tanks in sizes up to 865,000 litres

Applications

  • Rainwater harvesting from buildings and greenhouses

  • Horticulture and agriculture water storage

  • Sports ground irrigation

  • Fishkeeping and aquatics

  • Emergency water supply in disaster areas

  • Irrigation projects in developing regions

Materials

EPDM and Butyl Rubber liners

Performance

EPDM

Tensile strength 9.0 N/mm2

Water permeability < 10-6 m3/(m2 *day)

Static puncture 1.0mm: 0.75 kN

Butyl

Tensile strength 8.5 N/mm2

Water permeability < 10-6 m3/(m2 *day)

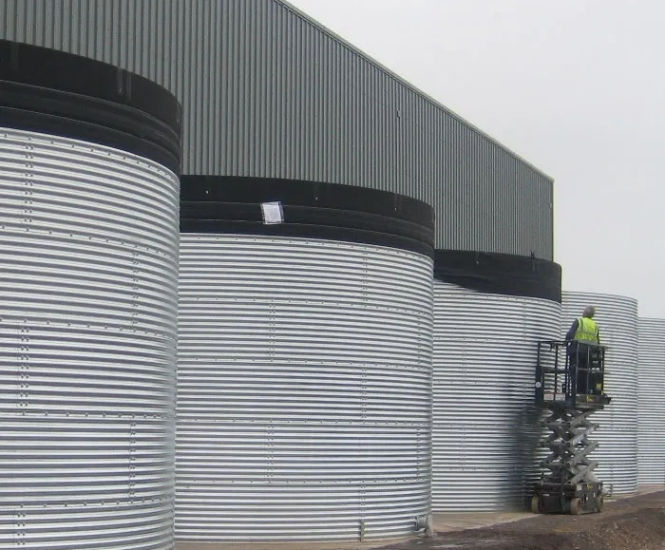

Water Storage Tank Kits

Gordon Low manufacture modular water tank kits. Constructed from BS2989 compliant cold-rolled galvanised steel and supplied with a 0.75mm or 1.0mm EPDM or Butyl rubber liner, kits are available for 1,600 litres to over 865,000 litres and include all fittings for on-site installation.

Options and Variations

Above-ground steel tank kits, drinking water tanks, replacement liners

Installation

Flat-packed for easy shipping and on-site assembly

Manufacture

Made in the UK
