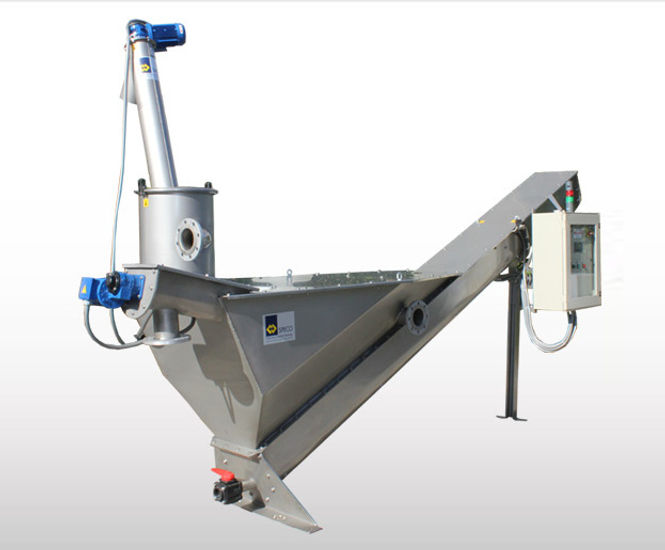

WASTEMASTER MIT Mini-Treatment Plant performs three different processes: screening, de-gritting, and de-greasing. The system treats wastewater from both municipal and industrial plants with high efficiency. It uses two technologies: a screw screen (CT) equipped with a SINT® engineering polymer screw and a floating screw system in SINT® engineering polymer for effective removal of floating matter. Suited for applications with limited space.

  • Three in one wastewater treatment plant for screening, de-gritting and de-greasing

  • Sturdy metal framework manufactured entirely from 304L / 316L stainless steel

  • SINT® engineering polymer screw with zero clearance between screw and screen, preventing obstruction of screen perforations

  • Heavy-duty shaftless screw manufactured from wear-resistant carbon steel or 304/316 stainless steel

  • Floating screw manufactured from SINT® engineering polymer for high removal of floating matter

  • Optional electric and electronic components (control panel, acoustic and visual malfunction alarms, solenoid valves)

  • Sewage throughput: up to 8 l/s

Applications

  • Medium-fine preliminary treatment at municipal and industrial wastewater inlets

  • Car wash facilities and small industrial treatment plants with limited space

  • Any wastewater stream requiring combined screening, grit removal, and grease separation

Specification

Model

A

B

C

D

E

F

G

H

L

M

P

Flange 1 UNI

Flange 2 UNI

MIT

2,915

2,345

1,000

4,890

2,100

2,815

1,043

1,084

1,560

1,637

1,530

DN100

DN100

Dimensions in mm. Custom configurations available on request.

Performance

  • Screening, de-gritting, and de-greasing combined in one machine

  • 90% separation efficiency for particles = 0.2 mm

  • Sewage throughput: up to 8 l/s

  • Continuous operation with shaftless screw technology

  • Optional automated control for discharge and cycle management

Options and variations

  • Electric and electronic package: control panel, acoustic/visual alarms, solenoid valves

  • Material upgrades (e.g., full 316L stainless steel construction)

  • Solenoid valves for automated operation
