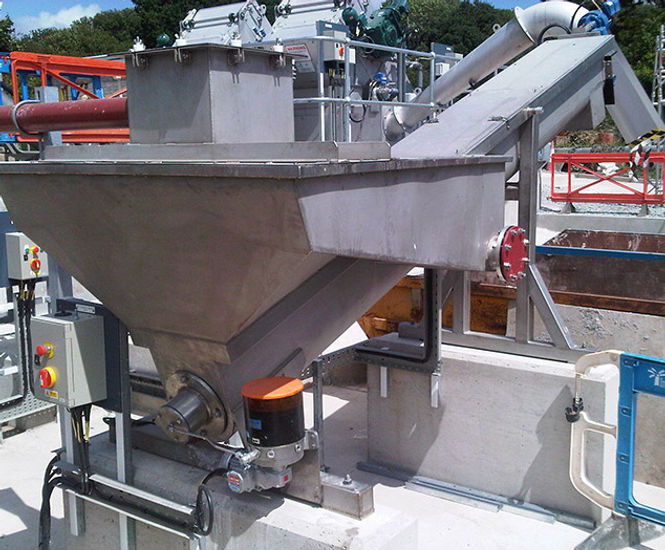

Tuke and Bell Vortex Grit Plant & Screw Classifier separates grit from sewage using a vortex chamber and screw conveyor. Paddle-driven flow keeps organic matter suspended while grit settles for removal. Grit is cleaned with compressed air and transferred to a screw classifier for discharge. Made from cast iron with a 25-year design life.

  • System for separating grit from sewage using vortex and screw mechanisms
  • Paddle-driven vortex chamber maintains constant flow and effective grit settlement
  • Air lift method cleans and transfers grit to classifier
  • Screw classifier includes wash water spray bar for grit cleaning
  • Freestanding tank design simplifies installation and pipework connection
  • All bearings and drives rated for 100,000-hour lifespan
  • Fully enclosed screw with lockable inspection covers for safety and maintenance

Applications

  • Municipal and industrial wastewater treatment plants

Materials

Cast iron

Performance

25-year design life

Bearings and drives rated for 100,000 hours

Installation

Freestanding tank construction

Universal tank handing for simplified pipework connection
