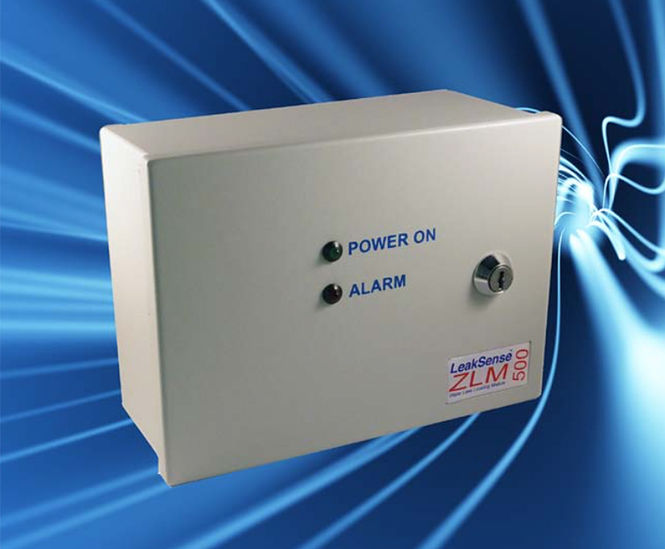

Aqualarm ZLM-500 zoned cable monitoring for water leaks

Product name

Aqualarm ZLM-500

Media detected

Water

Industrial applications

Pipes

Operation

Sensor cable

Components

Processing units

Features

Audible alarm
Visual alarm

Accuracy (±%)

The Aqualarm ZLM-500 zoned locating module is used to monitor combined leader / jumper and detecting cables for water leaks and cable damage.

It generates pulsed echo radar signals, which are transmitted along the entire length of the leader / jumper and detecting cables. When any change in the characteristics of the cable, whether water detected or open circuit, occurs, these are compared to pre-programmed limits and when these limits are exceeded, an alarm signal providing the meterage reading accurate to +/- 1m, will be sent to the designated Aqualarm master control panel.

The ZLM-500 is typically used for larger areas to monitor detection cable per zone. The module converts a zoned control panel into a locating system within a network-designed system when connected to either an Aqualarm i-Zone control panel or One-Touch system.

Key features

Wall-mounted
Converts a zoned control panel into a locating system
Pinpoints the location of water leaks, or cable damage, anywhere along the detecting cable, with an accuracy of ±1m
Can monitor up to 500m of combined leader / jumper and detecting cable
Made of powder-coated mild steel
LED and internal alarm sounder within module, for local alarm indication
For connection to i-Zone or i-Zone Touch control panels

Applications

Computer suites
IT / server rooms
Dealer floors
Data centres
Hotels
Kitchen / toilet and vending areas
Hospitals (MRI / plant rooms)
Leisure complexes
Supermarkets
Listed buildings
Museums and archive facilities

Operation

The Aqualarm ZLM-500 zoned locating module generates pulsed echo radar signals that are transmitted along the entire length of the leader / jumper and detecting cables. Any changes in the characteristics of the cable are compared to pre-programmed limits and an alarm signal is generated when these limits are exceeded.

Power to the ZLM-500 is generated via the Aqualarm CAN network. A local, volt-free alarm contact is provided, and other alarm contacts are available from the Aqualarm master control panel.
