Multi-media liquid filtration system

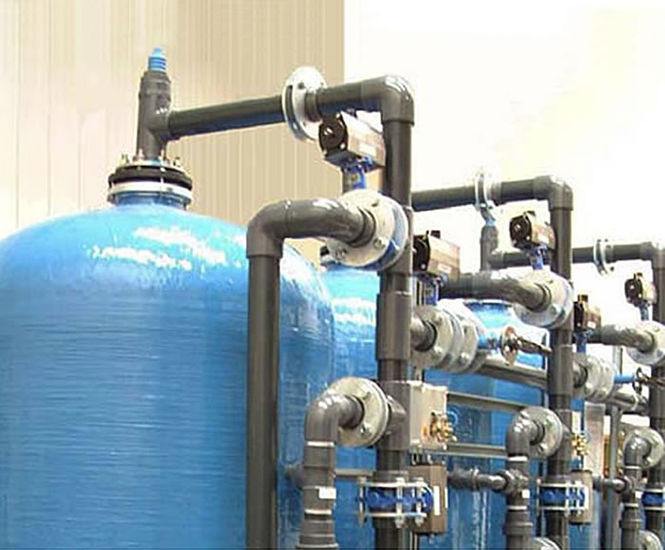

Hydroklear liquid filtration technologies and packages range from simplex sand filters to multiple banks of carbon filters and more sophisticated media. Hydroklear can provide basic controls or full treatment packages controlled from an HMI and PLC combination. Everything provided is based on proven technology. Flow rates: 0.5-150m3/hr

View all 3 images

Product details

Filter type

Multimedia filters

Media

Cooling water
Food / drink
Oils / lubricants / coolants
Potable water
Process liquids
Raw / grey water
Wastewater / effluent

Features

ATEX certified
Automatic
Continuous
No moving parts
Self cleaning

Maximum flow rate

150m3/h

Hydroklear liquid filtration technologies and packages range from simplex sand filters to multiple banks of carbon filters and more sophisticated media.

Hydroklear can provide basic controls or full treatment packages controlled from an HMI and PLC combination. Everything provided is based on proven technology.

Minimum flow rate: 0.5m³/hr
Maximum flow rate: 150m³/hr

Multi-media filters
Maximum suspended solids: <30mg/l
Typical output quality: <1mg/l

Carbon filter
Maximum chlorine: 10mg/l; 99% removal
Maximum suspended solids: <3mg/l

Iron / manganese
Maximum combined iron / manganese: 3mg/l
