The MSE Hiller POLYCOMPACT PD is a flexible polymer make-up unit that can be used to dissolve powder and liquid polyelectrolytes.

The units are suitable for use in the water, wastewater, paper, mineral, quarrying and food industries.

They offer control, regulation and optimisation of sludge thickening and dewatering, as well as process control systems with or without remote-controlled maintenance.

Features

  • Automatic and continuous preparation of an equally concentrated polymer parent or post solution in a three-chamber cross flow operation.

  • Economical, effective utilisation of the flocking aids and avoidance of lumping by means of the high-performance wash-in disperser.

  • Minimal alterations required to enable the use of liquid, pumpable polymers.

  • Provision of sufficient, optimally matured polymer parent or post solution, via control-of extraction material flow using level regulation in the extraction chamber.

  • The usable volume of the three chambers and the coordinated throughput amount guarantee the preparation of an optimally matured polymer parent or post solution.

  • Prepares and maintains a previously defined solution concentration via separately adjustable amounts of flocking aids and water.

Polyelectrolytes are used within the water industry as a flocculant to help bind together, or flocculate, suspended solid particles in the water. The addition of a polymer solution into water treatment can often make the water treatment process much more efficient - easier, faster and more cost effective.

MSE Hiller offer a range of polymer makeup systems for both Powder grade (up to 120kg/hr) and emulsion grade (up to 150 kg/hr) polymers.

All of the Polycompact® Polymer makeup units are modern, compact and offer a very consistent and accurate makeup concentration through state-of-the-art metering and dosing technology. Water flow and pressure fluctuations are dealt with automatically. The Polycompact® range all feature a touchscreen HMI and PLC from whether Rockwell (Alan-Bradley) or Siemens and are completely automatic in their operation.

MSE Hiller also offer a range of Polymer makeup accessories, such as Big Bag Handling systems, for use with up to 1,000kg bags, and Powder conveyor systems, reducing manual handling requirements at site.

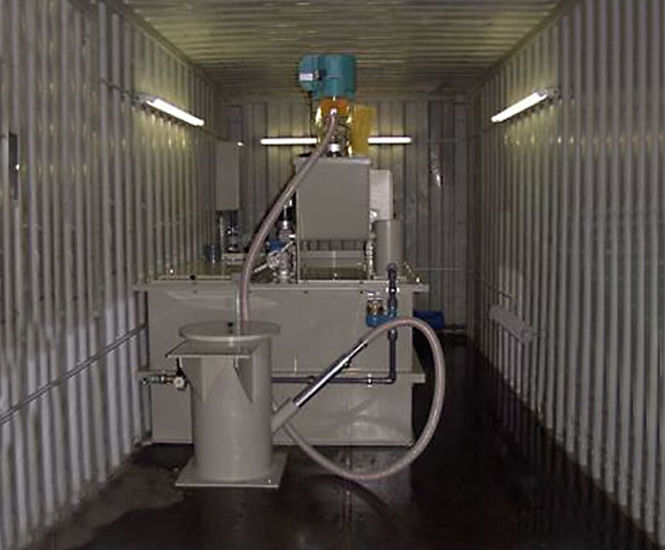

Polycompact® polymer makeup units can, if required, be fitted and installed into a standard ISO shipping containers for convenience and security. We have a selection of polymer units available (both stand alone and containerised) for hire for temporary trials and/or short-term requirements.
