Designed with safety and durability in mind to guarantee safe plant operation and ensure end product quality. It is ideal for differential pressure monitoring of filters and pumps, level measurement in pressurised vessels and flow measurement when used with a primary element.

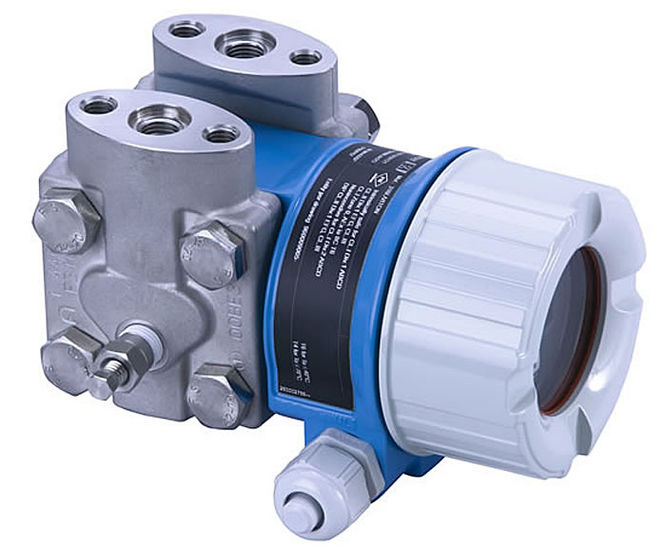

Reliable and robust, Deltabar M is ideal for hazardous applications. It is ATEX certified (Ex ia, Ex d, IEC Ex), and suitable for use in SIL 2 applications.

With an accuracy of 0.1% (0.075% optional) and a differential pressure measuring range of 10 mbar to 40 bar, it offers outstanding performance in demanding process conditions.

Deltabar M benefits from a high turndown (100:1) and modular electronics that enable simple replacement, set-up and commissioning.

Benefits

  • Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus

  • Easy process adaptation to impulse line high-pressure/low-pressure change via electric switch on the main electronics

  • Compact design and modular concept for easy replacement of display or electronics

  • Process pressure up to SIL2, certified to IEC 61508 and IEC 61511

  • Global usage thanks to the widest range of approvals for industries and applications

Specifications

  • Accuracy

    0,1%
    "PLATINUM" 0,075%

  • Process temperature

    -40 °C...85 °C
    (-40 °F...185 °F)

  • Pressure measuring range

    10mbar...40bar
    (0.15...580psi)

  • Main wetted parts

    316L

  • Material process membrane

    316L, AlloyC,

  • Measuring cell

    10 mbar...40 bar
    (0.15...580 psi)
