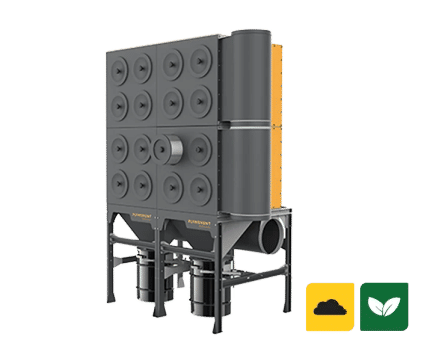

MultiDust® Bank (MDB) cartridge collectors are modular, self-cleaning filter systems designed for efficient filtration of dust and welding fumes.

The inlet and outlet can be repositioned to suit size and concentration of particles, space requirements and duct location.

Cleaned air recirculation and heat recovery contribute to the system's efficiency.

MDB can be connected to Plymovent extraction arms, downdraft tables, extraction hoods, fans and control equipment.

Efficient filtration of dust and fumes
Modular design for any size solution
Flexible positioning of inlet and outlet
Expandable as your business grows
Low cost of ownership
Dustbin level sensor optional
Up to 65.000 m3/hr filtration capacity per system
Proven concept, thousands of units installed worldwide

Applications

Medium to medium-heavy applications like professional manual welding or intermittent semi-automatic and robotic welding.

Heavy welding applications with semi-automatic and robotic welding in multiple shifts or 24/7.

MIG-MAG / GMAW welding
TIG / GTAW welding
FCAW welding
Stick / MMAW welding
Dry air born dust applications

Filter control options

MultiDust^® Bank is available in GO and PRO versions.

The system operates fully automatically. MDB GO has fixed factory settings that are applicable for 90% of the installations. If you require more advanced settings, MDB PRO is the system of choice.

MDB GO

MDB GO is an MDB filter unit connected to the ControlGo control panel. This panel is ideal for customers who want basic control over their filter system. With an external signal from a welding robot or timer, the MDB GO can start/stop automatically.

In addition to manual cleaning, the ControlGo offers automatic advanced progressive filter cleaning. The automatic filter cleaning means that the filter cleaning cycles are pressure controlled, based on fixed threshold values. The advantage of the automatic progressive cleaning is a longer filter life and lower operational costs.

MDB GO is a professional control panel that manages filter cleaning in an effective way.

MDB PRO

MDB PRO is an MDB filter system combined with the intelligent platform ControlPro and a connected extraction fan.

It offers an extensive feature package to monitor and control the filter cleaning system based on adjustable threshold values, the type of extraction fan, the required airflow and the corresponding fan speed.

By means of the user-friendly HMI, all parameter settings of the system are configurable through a clear and easy accessible menu structure. And moreover, it gives a clear insight into the system status and performance at all times.

ControlPro allows for remote access via a network connection for setting adjustments via a mobile device, online support or software updates. When there are multiple MDB filter systems, they can be controlled by one single ControlPro.

MDB PRO Connect

The MDB PRO Connect is an extension of the ControlPro control panel. If your filters are steered by ControlPro control systems, Plymovent gives the option to extend it with ControlPro Connect. This is an advanced web portal that gives you the power to monitor, manage and control any number of filters at a glance from your PC, tablet or smartphone.

Technical specifications

Housing material
Electrogalvanised steel with epoxy coating.

Filter cartridges
Large selection of filter cartridges available to meet air quality requirements of any metal fabrication process and dry airborne dust applications.

Capacity
Up to 65.000 m³/hr filtration per system.
