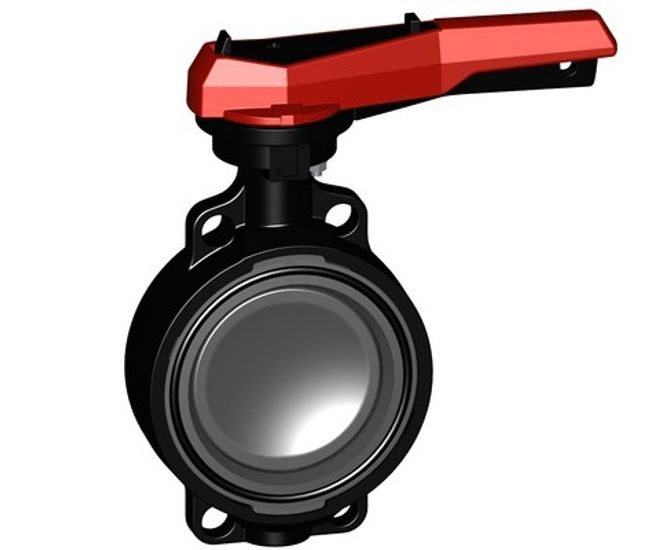

Compact, flexible and reliable, Type 567/568 butterfly shut-off valves are suitable for water and lug-style applications. The modular design allows you to exchange individual system components - fast, easily and at very little expense and effort.

Applications

  • cooling equipment
  • chemical process industry
  • marine
  • electroplating
  • automotive industry
  • power plants
  • Water treatment

Options

  • Manual valves with hand lever or reduction gear
  • Pneumatically or electrically actuated

Key benefits

  • 50% lower actuation torque compared to a centric butterfly valve due to the double eccentric operating principle
  • noticably reduced abrasion
  • integrated electric position indicator in the mounting flange
  • optimised gaskets
  • all components which are in contact with the media made of piping materials, consequently the permeation can be minimised
  • functional hand lever made of glass-fiber-reinforced polypropylene (PP-GF 30) with 5° ratchet setting, lockable


Applications range from water treatment and electroplating to power plants and cooling equipment.
