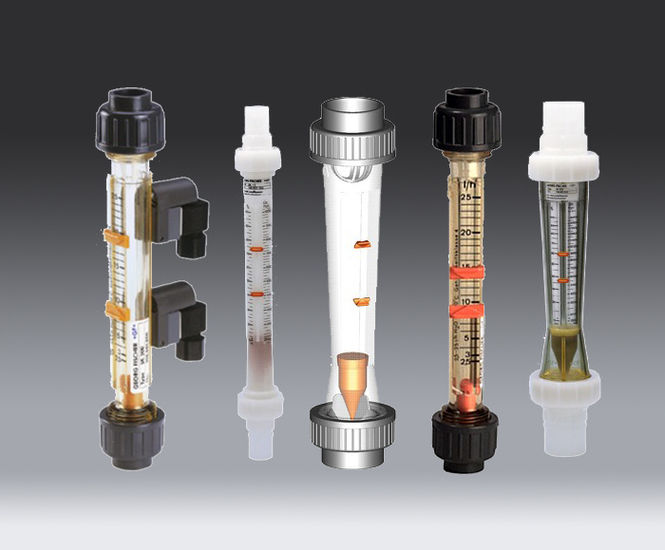

Type 335 and Type 350 variable area flowmeters
Type 335 and Type 350 plastic variable area flowmeters are radially installed, dismountable meters for measuring the flow rate in industrial pipework. Measurement ranges, are attuned to customers needs, and the range of materials available for the tubes and screwed fittings, so the flow meters can be used for a wide range of applications and a
Type 335 and Type 350 plastic variable area flowmeters are radially installed, dismountable meters for measuring the flow rate in industrial pipework.
Measurement ranges, are attuned to customers needs, and the range of materials available for the tubes and screwed fittings, so the flow meters can be used for a wide range of applications and a great variety of media.
When a medium flows upwards through the measuring tube, the float is raised to the point at which a state of equilibrium sets in between the lifting force of the medium and the weight of the float. The position where the float stabilises directly corresponds to the flow rate.
Key benefits
Imprinted double scale for water in percent and l/h
No auxiliary energy required
Top insert with damping function as a standard
Wide range of materials
Available measuring range from 50 l/h up to 60 000l/h
Large dimensions with PEEK guiding rod - no breakable parts
