System Distributed control systems
Equipment Signal conditioning
Functions Process control
Process monitoring
Communication protocols HART
Modbus
Profibus DP
Profibus PA

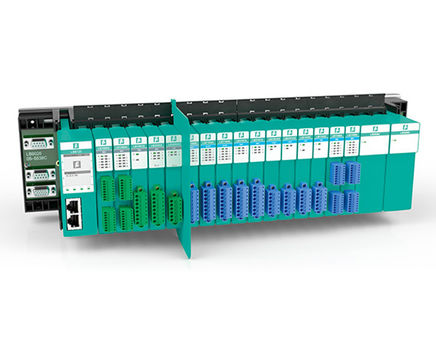

LB remote I/O stations are mounted in hazardous areas Zone 2/Class I, Div. 2 or Zone 22 or in the safe area. They form a modular signal conditioning system to interface signals from the field with a control system in the safe area.

LB remote I/O connects your conventional sensors and actuators to your DCS using a single, standardised fieldbus connection (PROFIBUS, Modbus and several more). The plug-in input and output modules can be hot-swapped in a running system without the need for a hot work permit.

There is a wide spectrum of single- and multi-channel I/O modules available, offering intrinsically safe and increased safety field connections. This ensures that engineering is easy and adaptable to the needs of your plant concept.

  • Mounting / maintenance without hot work permit
  • I/O-modules for Ex i (IS) and Ex e field connections
  • I/O modules can be mounted on the backplane in any order
  • 1-8 channel I/O modules
  • Standard buses (PROFIBUS, Modbus and others)
  • Configuration can be accomplished via the bus
  • HART-communication available
  • Optional redundancy for bus and power supply
  • Supports the FDT concept
  • Bus independent SIL 2 shut down outputs available
  • FATs and GAMP4 FATs optional


LB remote I/O stations are mounted in hazardous areas Zone 2/Class I, Div. 2 or Zone 22 or in the safe area. They form a modular signal conditioning system to interface signals from the field with a control system in the safe area.

LB remote I/O connects your conventional sensors and actuators to your DCS using a single, standardised fieldbus connection (PROFIBUS, Modbus and several more). The plug-in input and output modules can be hot-swapped in a running system without the need for a hot work permit.

There is a wide spectrum of single- and multi-channel I/O modules available, offering intrinsically safe and increased safety field connections. This ensures that engineering is easy and adaptable to the needs of your plant concept.

  • Mounting / maintenance without hot work permit
  • I/O-modules for Ex i (IS) and Ex e field connections
  • I/O modules can be mounted on the backplane in any order
  • 1-8 channel I/O modules
  • Standard buses (PROFIBUS, Modbus and others)
  • Configuration can be accomplished via the bus
  • HART-communication available
  • Optional redundancy for bus and power supply
  • Supports the FDT concept
  • Bus independent SIL 2 shut down outputs available
  • FATs and GAMP4 FATs optional
