Fittings Socket
Suitability Potable water
Wastewater / effluent
Characteristics Straight
Material Steel
Minimum diameter (mm) 80
Maximum diameter (mm) 300

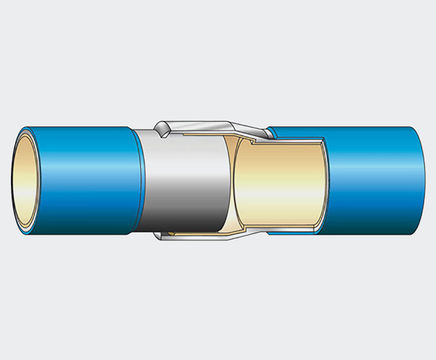

DKM socket weld joints are designed for use on potable water or sewage pipelines with high-pressure mains and no thrust blocks.

They can be used in applications that require corrosion resistance for use in aggressive ground conditions.

DKM socket weld joints are made from ST37, ST52, API, ASTM A106, X42, X52 or X60 grade steel finished blue for water applications or black for sewage applications.

A choice of three-layer PE (1.8-2.2mm thick), three-layer PP (1.8-2.2mm thick), or FBE (500µm thick) protective coatings is available. The joint is lined with cement mortar to DWI 25 (1) (a).

DKM socket weld joints protect against corrosion without leakage or minimum longevity of life.

Key features:

  • Pressure rating: 16 bar up to 200mm, 10 bar for 250mm and 300mm
  • No thrust blocks required.
  • Fittings: DKM push fittings
  • Options: Cement mortar rock shield coating for river crossings and rocky ground; special release tool for taking the joint apart.


DKM socket weld joints are designed for use on potable water or sewage pipelines with high-pressure mains and no thrust blocks.

They can be used in applications that require corrosion resistance for use in aggressive ground conditions.

DKM socket weld joints are made from ST37, ST52, API, ASTM A106, X42, X52 or X60 grade steel finished blue for water applications or black for sewage applications.

A choice of three-layer PE (1.8-2.2mm thick), three-layer PP (1.8-2.2mm thick), or FBE (500µm thick) protective coatings is available. The joint is lined with cement mortar to DWI 25 (1) (a).

DKM socket weld joints protect against corrosion without leakage or minimum longevity of life.

Key features:

  • Pressure rating: 16 bar up to 200mm, 10 bar for 250mm and 300mm
  • No thrust blocks required.
  • Fittings: DKM push fittings
  • Options: Cement mortar rock shield coating for river crossings and rocky ground; special release tool for taking the joint apart.
