Sector Utilities
Project type New build
Services provided Installation
Project location Wales
Client Carmarthenshire County Council
Consultant WEBS / EnSo International Ltd
Products used Biomarble



Challenge

The existing landfill leachate treatment plant at Nantycaws was failing to meet consent levels, and Carmarthenshire County Council was tankering on a daily basis. The Council was therefore looking for a robust treatment solution that would meet EA consent requirements and reduce the frequency of tankering.

Solution

Working in collaboration with WEBS, EnSo International Ltd was called in to offer a temporary treatment solution, in the form of an Ocean Professional Nitrification Plant, to test the design concept. The temporary plant was designed to take a proportion of the flow to enable EnSo / WEBS to establish the treatability of the effluent and to fine-tune the process design for a full treatment system. The 18-month trial proved successful and the rol-out of a permanent system took place in October 2012.

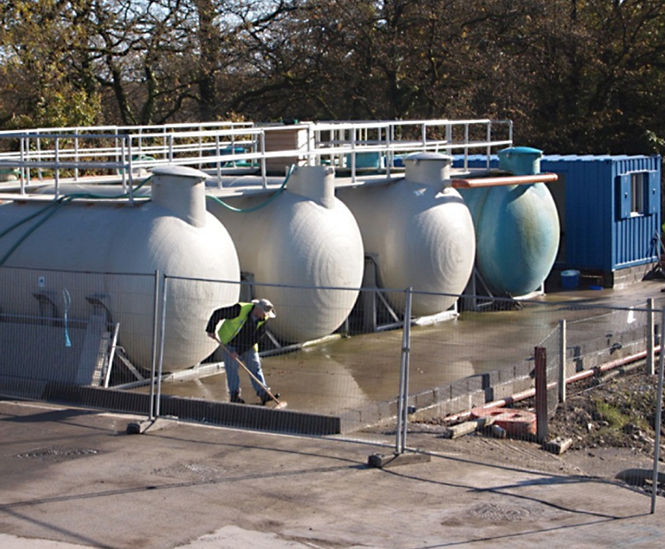

Following the trial, EnSo extended the temporary treatment plant to include a 40m³ pre-aeration and settlement tank followed by four 40m³ moving bed bio-reactor (MBBR) tanks. A drum filter was also installed as tertiary treatment to remove any residual solids.

Biomarble from the Warden Biomedia range was selected as the random filter media range for the pre-aeration tanks and moving bed bio-reactor (MBBR) tanks in the landfill leachate treatment plant at Nantycaws.

Outcome

The system has proved successful on two counts:

  • Firstly, costs have reduced by 95% as tankering is now significantly reduced
  • Secondly, the effluent quality is well within the consent limit

Dirk Daude, Commercial Manager at EnSo International Ltd said:

"We are very pleased with the results achieved by Warden's Biomedia. Biomarble from their Biomedia range has been a great asset in the design process of our landfill leachate treatment plant and has met expectations for efficiency and performance".


Challenge

The existing landfill leachate treatment plant at Nantycaws was failing to meet consent levels, and Carmarthenshire County Council was tankering on a daily basis. The Council was therefore looking for a robust treatment solution that would meet EA consent requirements and reduce the frequency of tankering.

Solution

Working in collaboration with WEBS, EnSo International Ltd was called in to offer a temporary treatment solution, in the form of an Ocean Professional Nitrification Plant, to test the design concept. The temporary plant was designed to take a proportion of the flow to enable EnSo / WEBS to establish the treatability of the effluent and to fine-tune the process design for a full treatment system. The 18-month trial proved successful and the rol-out of a permanent system took place in October 2012.

Following the trial, EnSo extended the temporary treatment plant to include a 40m³ pre-aeration and settlement tank followed by four 40m³ moving bed bio-reactor (MBBR) tanks. A drum filter was also installed as tertiary treatment to remove any residual solids.

Biomarble from the Warden Biomedia range was selected as the random filter media range for the pre-aeration tanks and moving bed bio-reactor (MBBR) tanks in the landfill leachate treatment plant at Nantycaws.

Outcome

The system has proved successful on two counts:

  • Firstly, costs have reduced by 95% as tankering is now significantly reduced
  • Secondly, the effluent quality is well within the consent limit

Dirk Daude, Commercial Manager at EnSo International Ltd said:

"We are very pleased with the results achieved by Warden's Biomedia. Biomarble from their Biomedia range has been a great asset in the design process of our landfill leachate treatment plant and has met expectations for efficiency and performance".
