Installation Ceiling mounted
Floor mounted
Wall mounted
Applications Assembly
Cutting
Deburring
Gluing
Grinding
Packaging
Polishing
Sealing
Number of axes 6
Maximum payload (kg) 6; 10
Reach (mm) 1098; 1420; 1632
Repeatability (±%) 0.05; 0.08; 0.1
Robot weight (kg) 130; 135

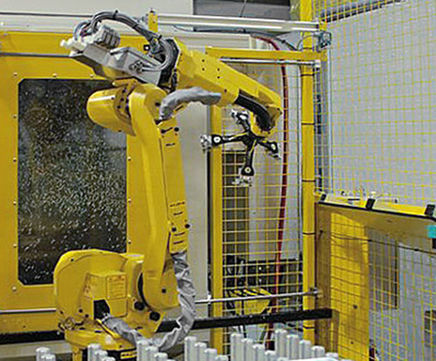

The M-10iA Series offers a high flexibility for applications up to 10 kg payloads. It offers a high speed for handling, pick & place and machine tending operations.

Suitability:

  • Machine tool loading and unloading
  • Gluing and sealing
  • Cutting, grinding, deburring and polishing
  • Packaging, packing
  • Material handling for assembly, plastic moulding

M-10iA is available in 3 different models:

  • M-10iA: 1420 mm, 10kg payload
  • M-10iA/6L: 1632 mm, 6kg payload, long arm version
  • M-10iA/10S: 1098 mm, 10kg payload, short arm version


The M-10iA Series offers a high flexibility for applications up to 10 kg payloads. It offers a high speed for handling, pick & place and machine tending operations.

Suitability:

  • Machine tool loading and unloading
  • Gluing and sealing
  • Cutting, grinding, deburring and polishing
  • Packaging, packing
  • Material handling for assembly, plastic moulding

M-10iA is available in 3 different models:

  • M-10iA: 1420 mm, 10kg payload
  • M-10iA/6L: 1632 mm, 6kg payload, long arm version
  • M-10iA/10S: 1098 mm, 10kg payload, short arm version
