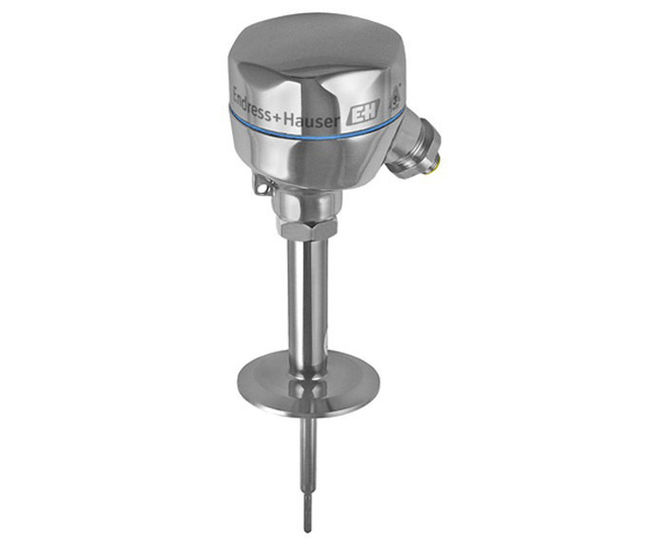

iTHERM ModuLine TM401 is a hygienic modular RTD direct contact thermometer designed for basic temperature measurement in Food & Beverages and Life Sciences applications, supporting metric installation and direct process contact. Fixed, non-replaceable insert and wide process connection compatibility enable cost-effective, rapid selection for hygienic and aseptic environments.

  • Accuracy class A according to IEC 60751 for reliable measurement
  • Operating temperature range from -50 to 200 degrees Celsius (-58 to 392 degrees Fahrenheit)
  • Maximum process pressure (static) at 20 degrees Celsius: 40 bar (580 psi)
  • Immersion length available up to 400 mm on request
  • Protection class up to IP69K for high washdown and cleaning requirements
  • International hygiene certifications: 3-A, EHEDG, ASME BPE, FDA, TSE Certificate of Suitability
  • Designed for non-hazardous area installation in hygienic and aseptic processes
  • Simple product selection and maintenance for time and cost savings
