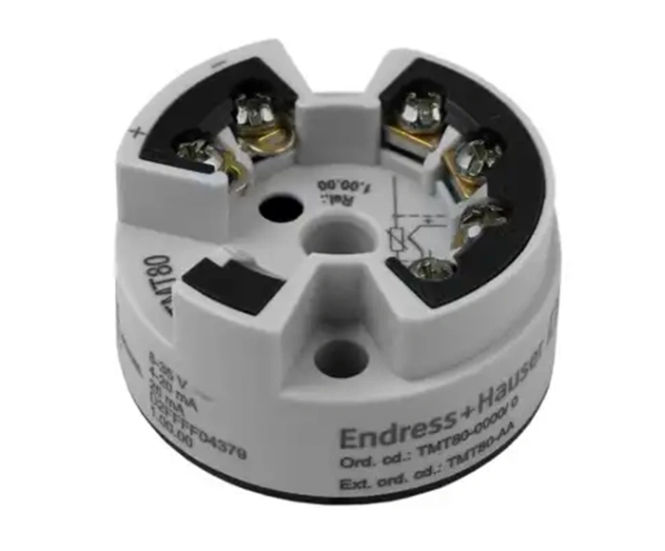

iTEMP TMT80 - compact 4-20 mA temperature head transmitter for sensors
iTEMP TMT80 temperature transmitter is a 4-20 mA head-mounted device with one universal sensor input, designed for converting RTD or thermocouple signals into a scalable analogue output. Configurable via PC, it supports precise temperature measurement in non-ex industry applications: supports both resistance thermometers (RTD) and thermocouples
Click for full image
iTEMP TMT80 - compact 4-20 mA temperature head transmitter for sensors
iTEMP TMT80 temperature transmitter is a 4-20 mA head-mounted device with one universal sensor input, designed for converting RTD or thermocouple signals into a scalable analogue output. Configurable via PC, it supports precise temperature measurement in non-ex industry applications.
Supports both resistance thermometers (RTD) and thermocouples (TC) with universal sensor input
Accuracy for Pt100 sensors: =0.5 K (-50 to 250 °C) or =0.9 °F (-58 to 482 °F)
PC programmable using ReadWin 2000 software and configuration kit
2-wire technology with 4 to 20 mA analogue output
Galvanic isolation of 500 V between input and output
Fault signal on sensor break or short circuit, presettable to NAMUR NE 43
