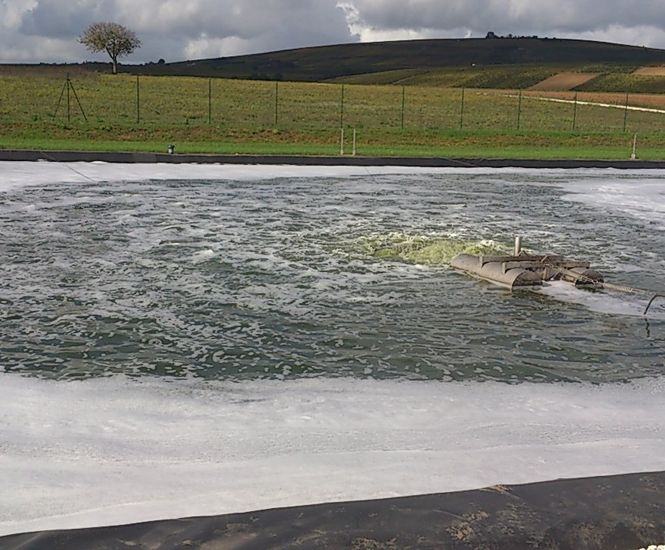

Aquaturbo® AER-SL is a floating and submersible aspirator for lagoons and channel / ditches.

It is an aspirator aerator with a patented impeller and vacuum chamber design that draws air below the water level and disperses it as micro-bubbles in any chosen direction. It is suitable for applications where aeration and directional flow generation are required in a single unit.

Multiple mounting options allow use in any basin geometry.

Applications

  • Directional aeration + mixing

  • Storage, equalisation, contact + stabilisation

  • Nitrification / denitrification

  • SBR

Features

  • Independent aeration + mixing [dual speed]

  • Non-clogging impeller + vacuum chamber

  • Robust + compact design - low vibration

  • Simple installation + removal

Range

  • 1.5-30kW

  • 2 + 4-pole + dual speed, direct drive

  • EMOD motor - IP68 protection

  • AISI 304 / 316 or special SS

Configurations

  • Rail, floor and pontoon mount options

  • Any operating angle - 0-180°

  • 1x submerged drive

  • Fixed or variable WL
