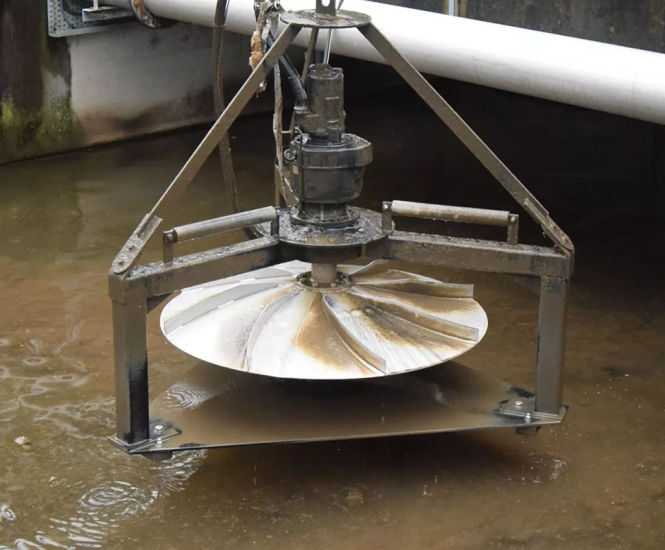

Aquaturbo® MIX-GS anoxic mixers provide high mixing performance in both low and high solids concentration applications. They consume less than 3W/m3 for anoxic zone applications.

MIX-GS has an intensive, low-energy, 360-degree mixing pattern and a non-clogging impeller. It is available as submerged drive or surface drive with extended shaft.

MIX-GS can be converted to an AER-GS independent aerator and mixer if required.

Applications

  • High efficiency anoxic mixing of basins and tanks

  • Activated sludge processes

  • Denitrification and SBR

  • Deep tanks

  • High mixed liquor suspended solids (MLSS)

Features

  • Intensive low energy-to-volume mixing

  • Non-clogging design

  • Low noise

  • Robust design - low maintenance

Components

  • 1.1 - 30kW

  • 10 - 42 rpm, geared drive

  • Stub shaft and extended shaft options

  • AISI 304/316 or special SS

Configurations

  • Fixed bridge and floor-mount only

  • Vertical operation only

  • 1x submerged or surface drive

  • Fixed or variable water level

Technical data

Motor Power

Impeller diameter

R.P.M.

Maximum Airflow

30 KW

2300 - 3000 mm

42 - 30,5

2500 - 3250 m3/h

22 KW

2300 - 3000 mm

37,2 - 27

2000 - 2600 m3/h

18,5 KW

2300 - 3000 mm

35 - 23

1600 - 2050 m3/h

15 KW

2300 - 3000 mm

32 - 21

1400 - 1800 m3/h

11 KW

2300 - 3000 mm

28 - 17,5

1200 -1550 m3/h

7,5 KW

2000 - 2500 mm

32,8 - 22,5

1000 - 1250 m3/h

5,5 KW

2000 - 2500 mm

28,5 - 18,5

900 - 1100 m3/h

4 KW

2000 - 2500 mm

23,6 - 16

750 - 900 m3/h

3 KW

1500 - 2000 mm

34,48 - 20,5

600 -800 m3/h

2,2 KW

1500 - 2000 mm

30,5 - 17

500 - 650 m3/h

1,5 KW

1500 - 2000 mm

25,3 - 14

400 - 500 m3/h

1,1 KW

1500 - 2000 mm

22,3 - 10

350 - 450 m3/h
