Aquaturbo^® MIX-SL is a multi-purpose, multi-directional, submerged mixer for general mixing and flow generation.

Adaptable to any basin configuration, its helical impeller provides intensive, directional sub-surface mixing pattern with negligible surface disturbance and low power to volume.

Applications

Directional mixing and flow generation
General mixing of lagoons, basins and tanks
Activated sludge processes
Denitrification and SBR

Features

Non-clogging, gentle action impeller
High quality, low maintenance submerged motor
Robust and compact design - low vibration
Simple installation and removal

Range

1.5-22kW
4 + 6-pole speeds, direct drive
Submerged motor - IP68 protection
AISI 304/316 or other SS

Configurations

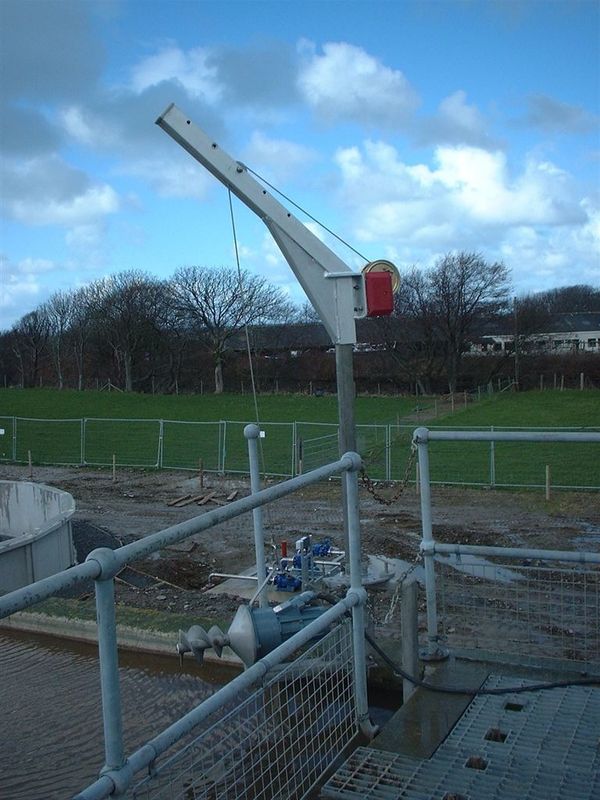

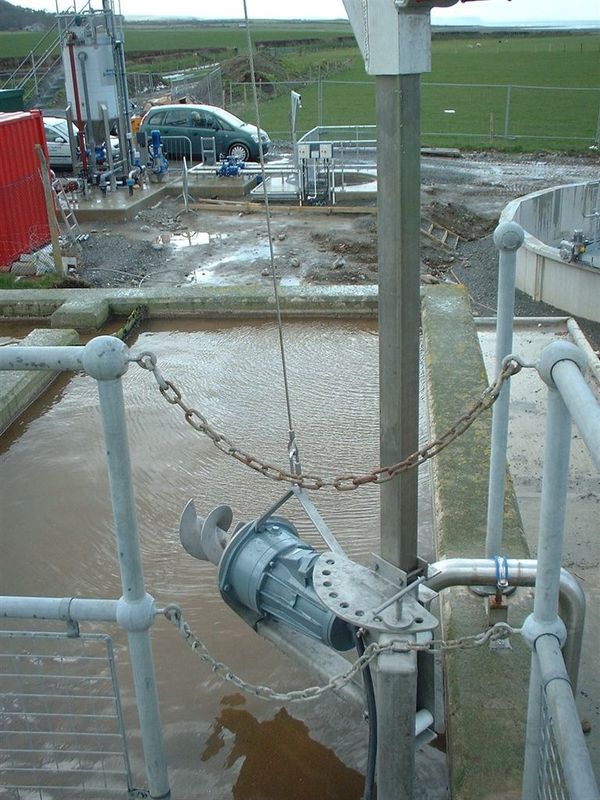

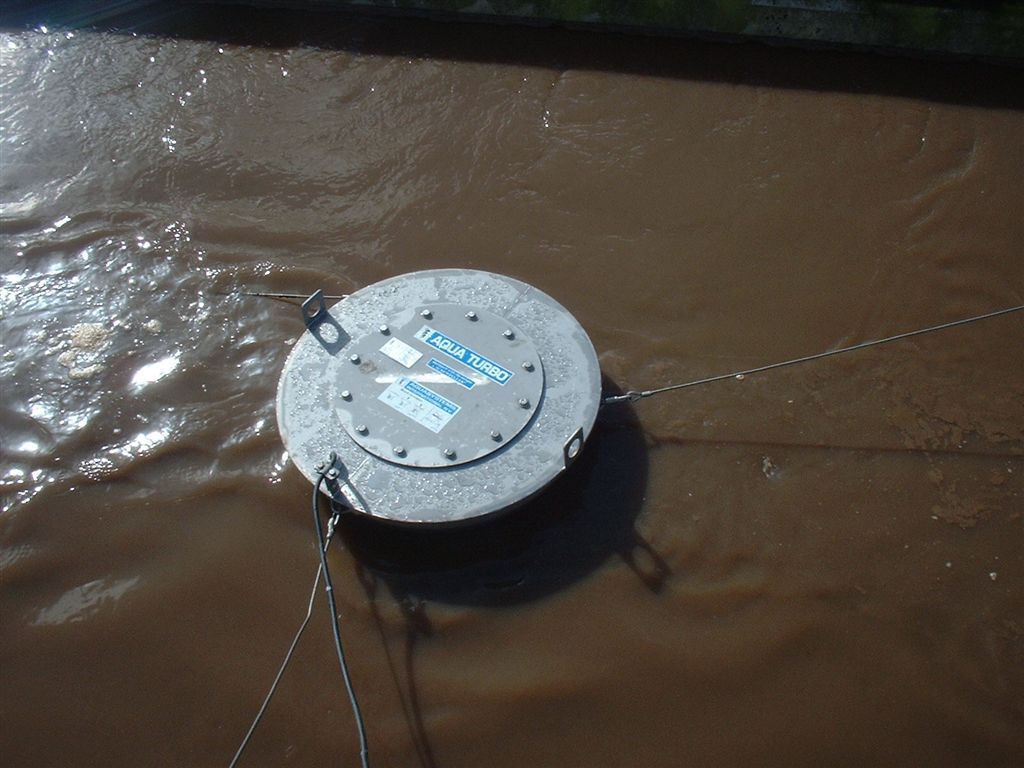

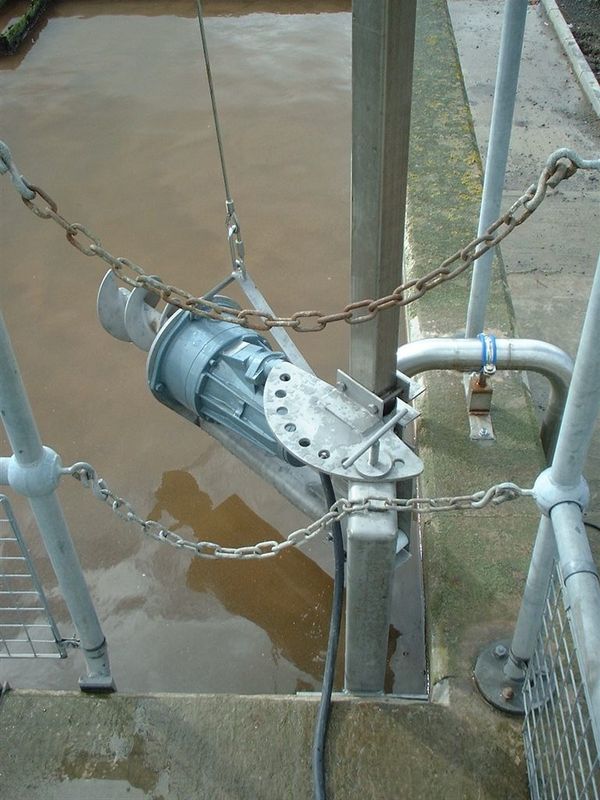

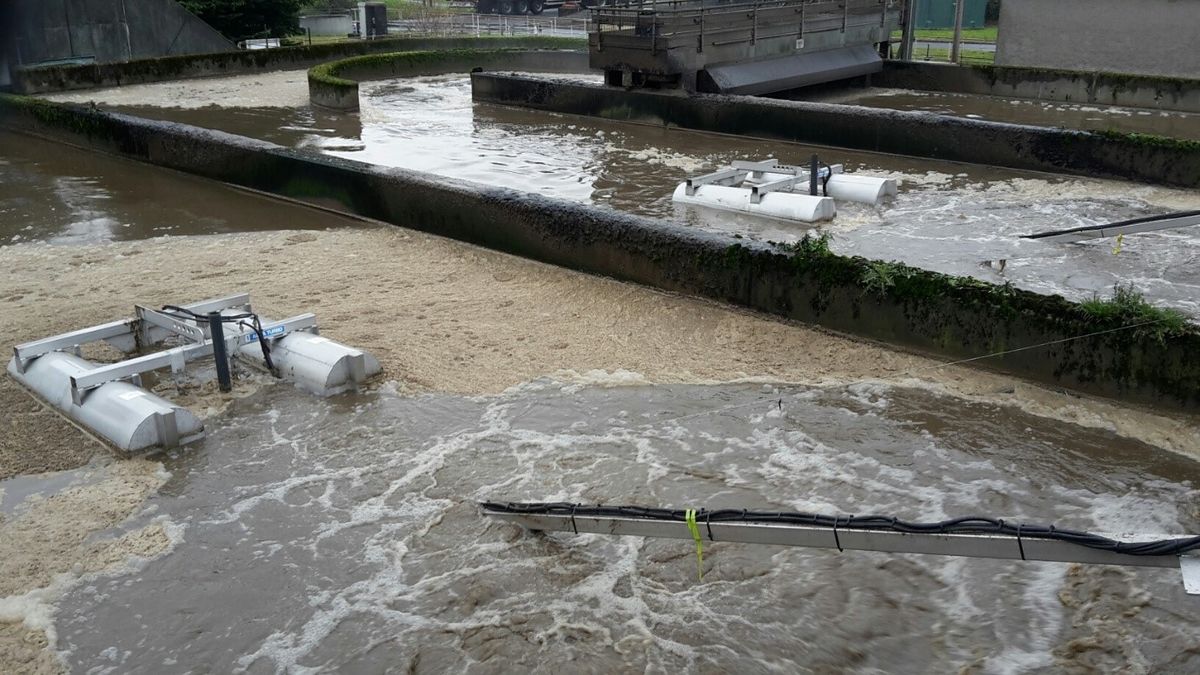

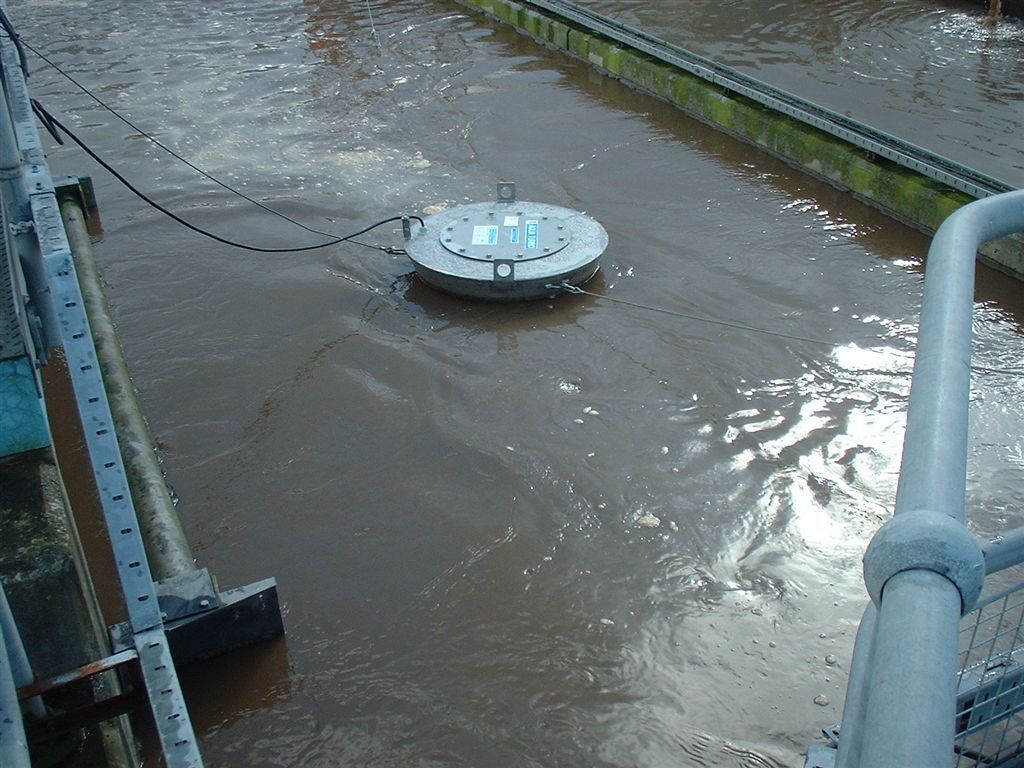

Rail, floor, pontoon mount options
Any operating angle - 0-180°
1x submerged drive
Fixed or variable WL

Technical data

SERIES 24: 1500 rpm

Model MIX - SL	P motor (KW)	RPM	Ø float A (mm)	Draught B(mm)	H total C (mm)	Mass (Kg)
0150-24	1,5	1390	512	698	928	51
0220-24	2,2	1375	512	715	945	55
0300-24	3	1350	527	776	1006	60
0400-24	4	1380	527	798	1028	64
0550-24	5,5	1360	609	875	1105	87
0650-24	6,5	1400	609	881	1111	89
0750-24	7,5	1410	725	1060	1330	104
0900-24	9	1420	725	1050	1320	113

SERIES 16 : 1000 rpm

Model MIX - SL	P motor (KW)	RPM	Ø float A (mm)	Draught B(mm)	H total C (mm)	Mass (Kg)
0300-16	3	930	725	1064	1334	106
1400-16	4	950	725	1081	1351	117
1550-16	5,5	960	890	1308	1578	184
1750-16	7,5	965	890	1333	1603	197
1100-16	11	965	890	1368	1638	216
